Pawan-ec - Product Details

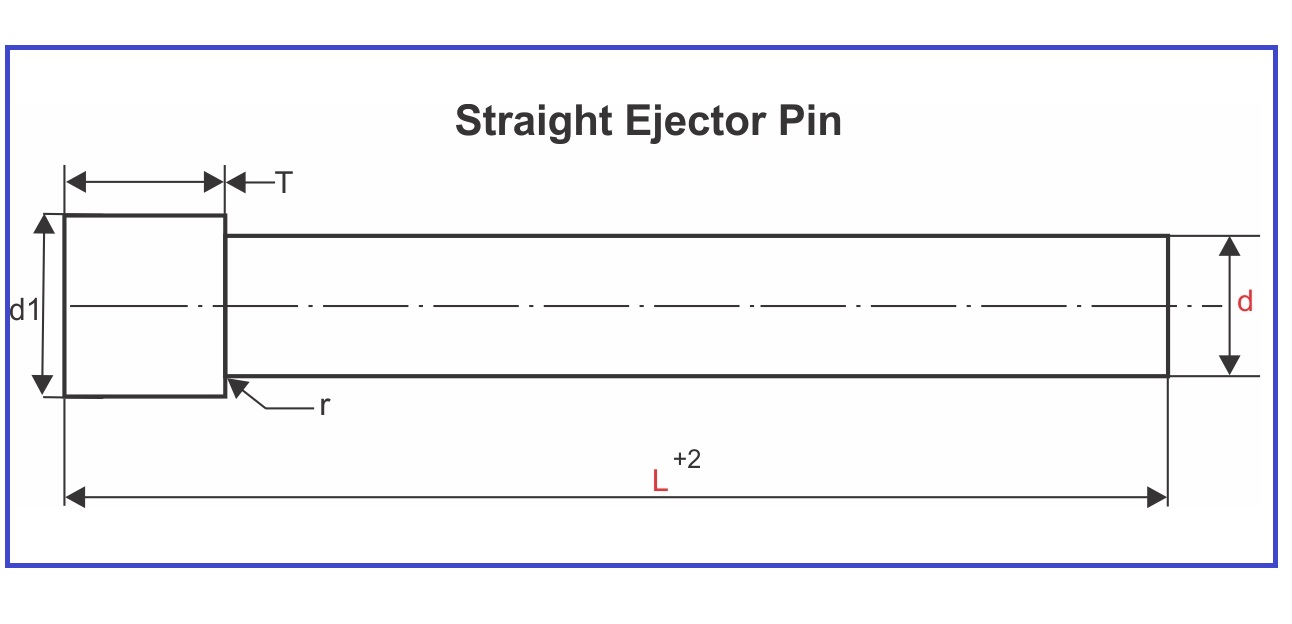

Item Code	D mm	L mm	d1 (mm)	T (mm)
PEPH (HDS) - 6X100	6	100	10	6
PEPH (HDS) - 6X150	6	150	10	6
PEPH (HDS) - 6X200	6	200	10	6
PEPH (HDS) - 6X250	6	250	10	6
PEPH (HDS) - 6X300	6	300	10	6
PEPH (HDS) - 6X350	6	350	10	6
PEPH (HDS) - 6X400	6	400	10	6
PEPH (HDS) - 6X500	6	500	10	6
PEPH (HDS) - 8X100	8	100	13	8
PEPH (HDS) - 8X150	8	150	13	8
PEPH (HDS) - 8X200	8	200	13	8
PEPH (HDS) - 8X250	8	250	13	8
PEPH (HDS) - 8X300	8	300	13	8
PEPH (HDS) - 8X350	8	350	13	8
PEPH (HDS) - 8X400	8	400	13	8
PEPH (HDS) - 8X500	8	500	13	8
PEPH (HDS) - 8X600	8	600	13	8
PEPH (HDS) - 10X100	10	100	15	8
PEPH (HDS) - 10X150	10	150	15	8
PEPH (HDS) - 10X200	10	200	15	8
PEPH (HDS) - 10X250	10	250	15	8
PEPH (HDS) - 10X300	10	300	15	8
PEPH (HDS) - 10X350	10	350	15	8
PEPH (HDS) - 10X400	10	400	15	8
PEPH (HDS) - 10X500	10	500	15	8
PEPH (HDS) - 10X600	10	600	15	8
PEPH (HDS) - 10X700	10	700	15	8
PEPH (HDS) - 10X800	10	800	15	8
PEPH (HDS) - 12X100	12	100	17	8
PEPH (HDS) - 12X150	12	150	17	8
PEPH (HDS) - 12X200	12	200	17	8
PEPH (HDS) - 12X250	12	250	17	8
PEPH (HDS) - 12X300	12	300	17	8
PEPH (HDS) - 12X350	12	350	17	8
PEPH (HDS) - 12X400	12	400	17	8
PEPH (HDS) - 12X500	12	500	17	8
PEPH (HDS) - 12X600	12	600	17	8
PEPH (HDS) - 12X700	12	700	17	8
PEPH (HDS) - 12X800	12	800	17	8
PEPH (HDS) - 15X100	15	100	20	8
PEPH (HDS) - 15X150	15	150	20	8
PEPH (HDS) - 15X200	15	200	20	8
PEPH (HDS) - 15X250	15	250	20	8
PEPH (HDS) - 15X300	15	300	20	8
PEPH (HDS) - 15X350	15	350	20	8
PEPH (HDS) - 15X400	15	400	20	8
PEPH (HDS) - 15X500	15	500	20	8
PEPH (HDS) - 15X600	15	600	20	8
PEPH (HDS) - 15X700	15	700	20	8
PEPH (HDS) - 15X800	15	800	20	8
PEPH (HDS) - 16X100	16	100	21	8
PEPH (HDS) - 16X150	16	150	21	8
PEPH (HDS) - 16X200	16	200	21	8
PEPH (HDS) - 16X250	16	250	21	8
PEPH (HDS) - 16X300	16	300	21	8
PEPH (HDS) - 16X350	16	350	21	8
PEPH (HDS) - 16X400	16	400	21	8
PEPH (HDS) - 16X500	16	500	21	8
PEPH (HDS) - 16X600	16	600	21	8
PEPH (HDS) - 16X700	16	700	21	8
PEPH (HDS) - 16X800	16	800	21	8
PEPH (HDS) - 20X100	20	100	25	8
PEPH (HDS) - 20X150	20	150	25	8
PEPH (HDS) - 20X200	20	200	25	8
PEPH (HDS) - 20X250	20	250	25	8
PEPH (HDS) - 20X300	20	300	25	8
PEPH (HDS) - 20X350	20	350	25	8
PEPH (HDS) - 20X400	20	400	25	8
PEPH (HDS) - 20X500	20	500	25	8
PEPH (HDS) - 20X600	20	600	25	8
PEPH (HDS) - 20X700	20	700	25	8
PEPH (HDS) - 20X800	20	800	25	8
PEPH (HDS) - 25X100	25	100	30	8
PEPH (HDS) - 25X150	25	150	30	8
PEPH (HDS) - 25X200	25	200	30	8
PEPH (HDS) - 25X250	25	250	30	8
PEPH (HDS) - 25X300	25	300	30	8
PEPH (HDS) - 25X350	25	350	30	8
PEPH (HDS) - 25X400	25	400	30	8
PEPH (HDS) - 25X500	25	500	30	8
PEPH (HDS) - 25X600	25	600	30	8
PEPH (HDS) - 25X700	25	700	30	8
PEPH (HDS) - 25X800	25	800	30	8

Making Things Possible

Product Details

Ejector Pins Heavy Load - PEPH

Product of: Pawan
