Product Details

Guide Pin - PGPB

Technical Description

Pin Material :- 20 Mn Cr5/En 353
Pin Hardness :- 55-58 HRC.

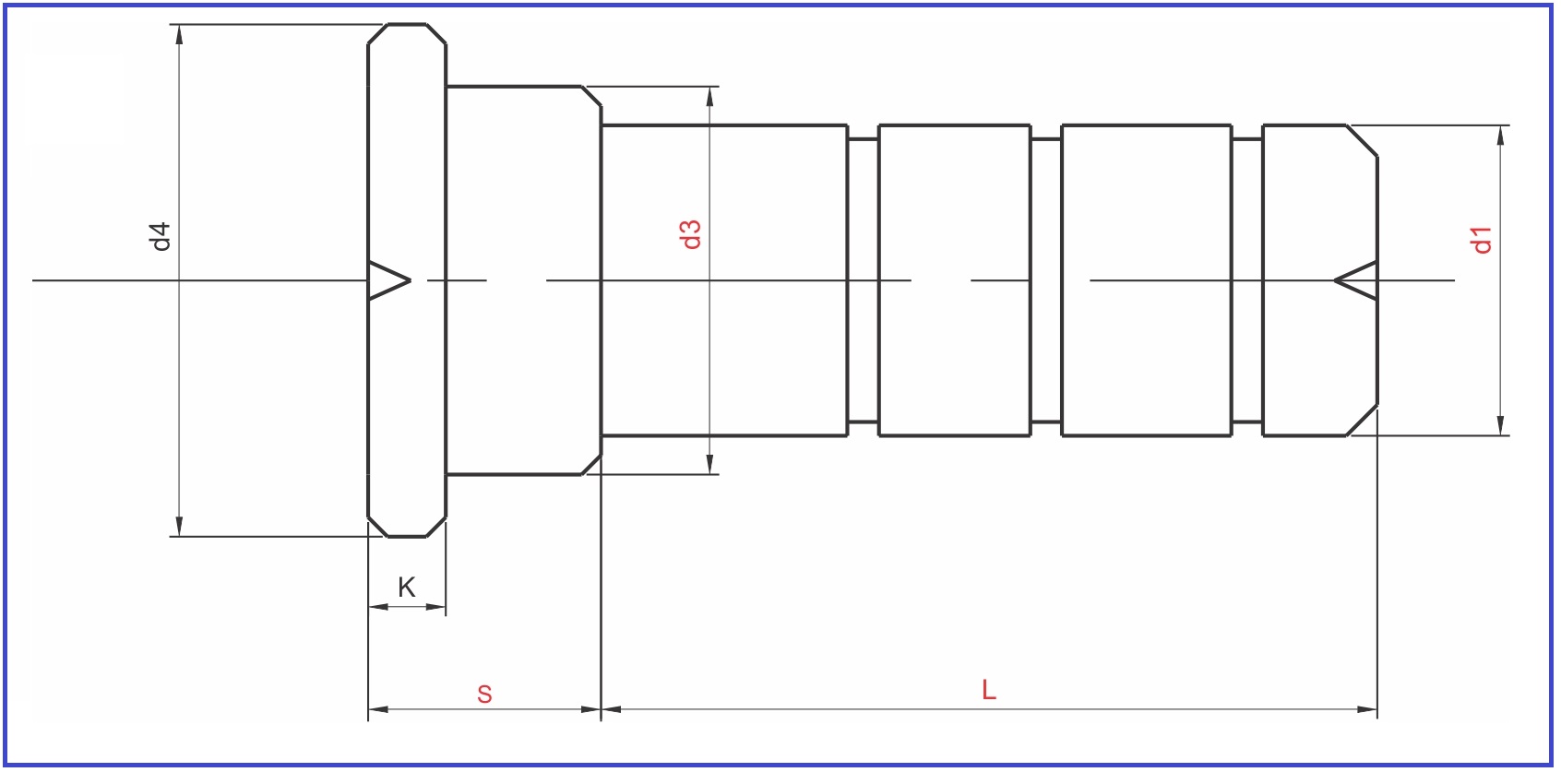

Dia (d1)Range :- 9mm to 60mm
Length (L)Range :- 20mm to 175mm

Order Type :- Code d1-d3-S2-L
Example :- PGPB 9-14-36-45
Availability :- 7 Days
(*Note - This is tentative schedule, may vary as per material availability)

Product of: Pawan
Pawan Logo
Add to cart CAD File Item Code
