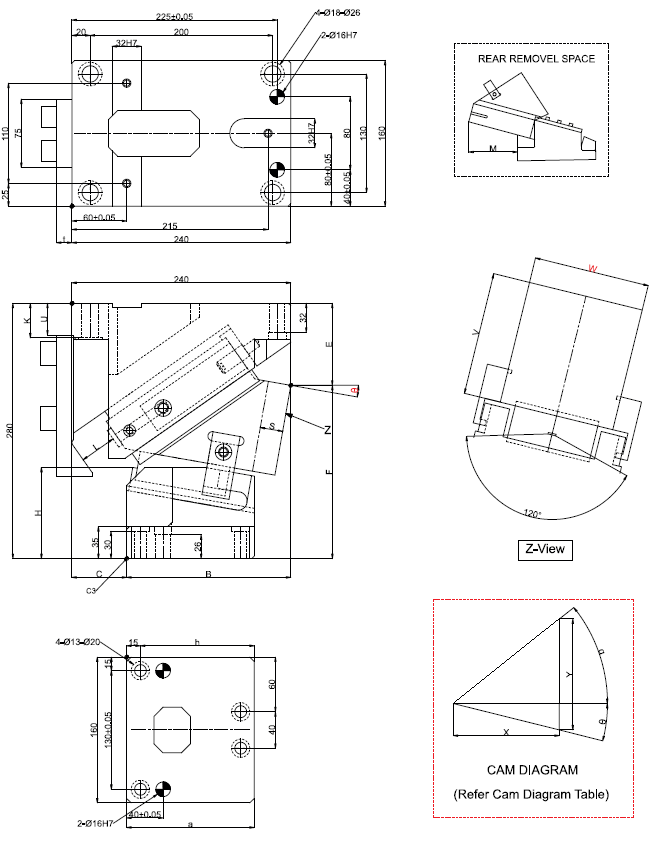

Arial Cam Unit - PCU-CS9-100-(00-70)

Technical Description

Material Type: Refer catalogue for material details

Width (W) : 100 mm

Angle (Φ) : 00 to 70



Order Type : Code-Size (W)-Φ-OC
Example : PCU-CS9-100-10-K

*For OC option Please refer to our catalogue

Product of: Pawan
Pawan Logo
Add to cart CAD File Item Code W MmAnglea mmb mmc mmE mmF mmk mml mmU mmV MmM mmS mmSL KgSLM KgWF KgWFM Kgwt Kg
PCU-CS9-100-00100024016080851953840551008328.3313.3(31.9)2819.7(287.5)44.1(4.5)88.2(9.0)14.3
PCU-CS9-100-051005234.82154.8280802003840551208328.3313.3(31.9)2819.7(287.5)44.1(4.5)88.2(9.0)15
PCU-CS9-100-101001024018060901903840401009633.3313.3(31.9)2819.7(287.5)44.1(4.5)88.2(9.0)13.3
PCU-CS9-100-1510015251.24181.247087.24192.763840351209633.9313.3(31.9)2819.7(287.5)44.1(4.5)88.2(9.0)15
PCU-CS9-100-20100202401905011017038321510011630.9219.3(22.4)2558.5(260.9)44.1(4.5)88.2(9.0)13.8
PCU-CS9-100-2510025249.21209.2140107.7172.338321512011632219.3(22.4)2558.5(260.9)44.1(4.5)88.2(9.0)15
PCU-CS9-100-30100302402103011017038301012012733.5175.4(17.9)2807.0(286.2)44.1(4.5)88.2(9.0)15.5
PCU-CS9-100-3510035247.46217.463011416638301012012735.3175.4(17.9)2807.0(286.2)44.1(4.5)88.2(9.0)15
PCU-CS9-100-40100402402103011516538301012013039175.4(17.9)2807.0(286.2)44.1(4.5)88.2(9.0)15.8
PCU-CS9-100-4510045242.73227.7315128.04151.9638301012012942.2175.4(17.9)2807.0(286.2)44.1(4.5)88.2(9.0)15
PCU-CS9-100-5010050240230101201602530014013246.7175.4(17.9)2807.0(286.2)44.1(4.5)88.2(9.0)16.9
PCU-CS9-100-5510055243.28243.280142.12137.882530014013252.3175.4(17.9)2807.0(286.2)44.1(4.5)88.2(9.0)17.7
PCU-CS9-100-601006024024001451352530014014260175.4(17.9)2807.0(286.2)44.1(4.5)88.2(9.0)17.6
PCU-CS9-100-6510065255.94255.940149.23130.772530015013470.9175.4(17.9)2807.0(286.2)44.1(4.5)88.2(9.0)17
PCU-CS9-100-701007024024001451352520014013258.5548.3(55.9)2741.5(279.6)44.1(4.5)88.2(9.0)15.9
