Product Details

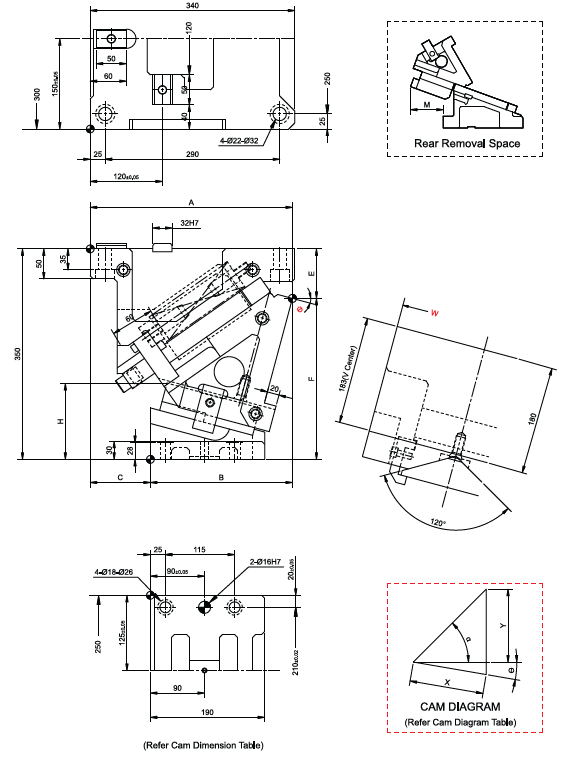

Arial Cam Unit - PCU-CS4-300-(00-40)

Technical Description

Material Type: Refer catalogue for material details

Width (W) : 300 mm

Angle (Φ) : 00 to 40

Order Type : Code-Size (W)-Φ-OC
Example : PCU-CS4-300-00-N

*For OC option Please refer to our catalogue

Product of: Pawan

Add to cart	CAD File	Item Code	W Mm	Angle	a mm	b mm	c mm	E mm	F mm	h mm	M mm	S mm	SL Kg	SL1 Kg	SLM Kg	WF Kg	WFM Kg	wt Kg
		PCU-CS4-300-00	300	0	313	175	138	58	292	102	47	38.6	1634(166.7)	8744(891.6)	9806(1000.0)	196.1(20.0)	392.3(40.0)	137.2
		PCU-CS4-300-05	300	5	320.64	195.64	125	64.34	285.66	110.8	61	42.6	1634(166.7)	8853(902.8)	9806(1000.0)	196.1(20.0)	392.3(40.0)	135.9
		PCU-CS4-300-10	300	10	331.08	216.08	115	72.47	277.53	119.1	70	46.7	1634(166.7)	8935(911.1)	9806(1000.0)	196.1(20.0)	392.3(40.0)	135.7
		PCU-CS4-300-15	300	15	336.17	236.17	100	82.37	267.63	126.8	80	50.9	1634(166.7)	9003(918.0)	9806(1000.0)	196.1(20.0)	392.3(40.0)	133
		PCU-CS4-300-20	300	20	340.76	255.76	85	94	256	133.9	88	55.3	1634(166.7)	9071(925.0)	9806(1000.0)	196.1(20.0)	392.3(40.0)	131.5
		PCU-CS4-300-30	300	30	347.83	292.83	55	112.25	237.75	155.7	103	65.1	1634(166.7)	9180(936.1)	9806(1000.0)	196.1(20.0)	392.3(40.0)	131
		PCU-CS4-300-40	300	40	351.17	326.17	25	136.66	213.34	173.9	116	77.1	1634(166.7)	9275(945.8)	9806(1000.0)	196.1(20.0)	392.3(40.0)	133.3
