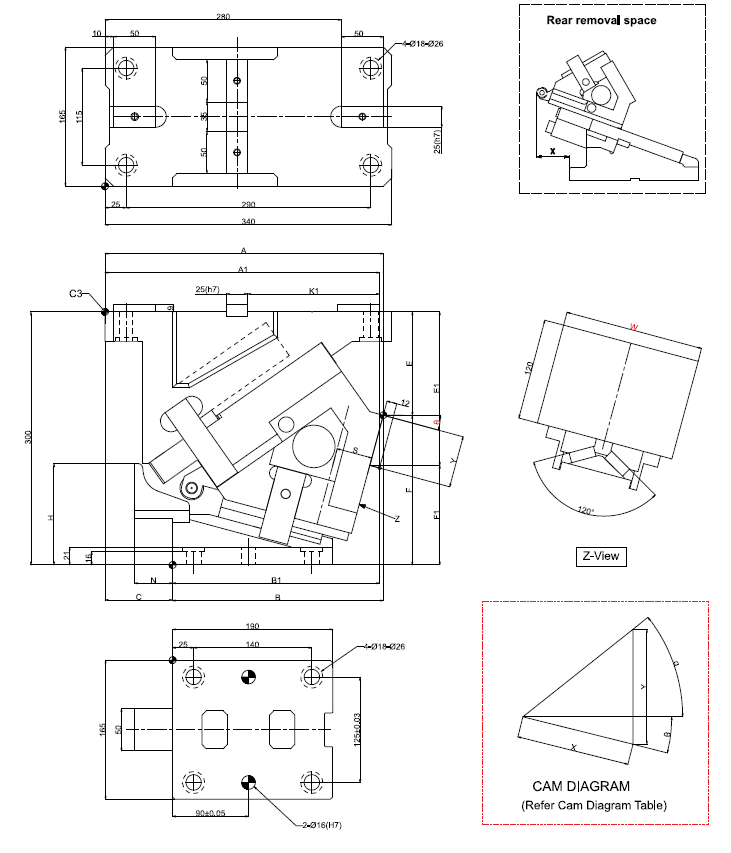

Item Code	W Mm	Angle	a mm	a1 mm	b mm	b1 mm	c mm	E mm	e1 mm	F mm	f1 mm	h mm	K1 Mm	N1 Mm	Y Mm	M mm	S mm	SL Kg	SL1 Kg	SLM Kg	WF Kg	wt Kg
PCU-CS15-165-00	165	0	335.84	347.84	207.84	219.84	128	96.98	170	203.02	130	80	180.5	55	73.02	21	32.1	449 (45.8)	2344 (239.0)	2694 (274.7)	294.2 (30.0)	76.1
PCU-CS15-165-05	165	5	335.25	340.82	222.25	227.82	113	100.91	175	199.09	125	98	173	55	73.32	37	35.5	449 (45.8)	2380 (242.7)	2694 (274.7)	294.2 (30.0)	74.2
PCU-CS15-165-10	165	10	337.27	337.3	236.27	236.3	101	111.09	180	188.91	120	109	165.5	50	67.86	48	38.9	449 (45.8)	2407 (245.4)	2694 (274.7)	294.2 (30.0)	73.8
PCU-CS15-165-15	165	15	329.78	325.45	249.78	245.45	80	122.46	185	177.54	115	120	156.5	45	61.53	66	42.4	449 (45.8)	2429 (247.7)	2694 (274.7)	294.2 (30.0)	73.1
PCU-CS15-165-20	165	20	332.68	323.61	262.68	253.61	70	129.99	190	170.01	110	137	149	42	59.49	71	46.1	449 (45.8)	2452 (250.0)	2694 (274.7)	294.2 (30.0)	72.3
PCU-CS15-165-25	165	25	332.88	319.83	274.88	261.83	58	138.62	195	161.38	105	154	140	37	56.61	83	50	449 (45.8)	2470 (251.8)	2694 (274.7)	294.2 (30.0)	72.1
PCU-CS15-165-30	165	30	334.28	315.39	286.28	267.39	48	148.28	205	151.72	95	125	132.5	30	58.57	90	54.3	449 (45.8)	2487 (253.7)	2694 (274.7)	294.2 (30.0)	71.9
PCU-CS15-165-35	165	35	329.8	305.16	296.8	272.16	33	158.89	215	141.11	85	135	125	25	60.1	100	59	449 (45.8)	2505 (255.5)	2694 (274.7)	294.2 (30.0)	72.2
PCU-CS15-165-40	165	40	321.35	291.18	306.35	276.18	15	170.38	225	129.62	75	155	117.5	25	61.23	111	64.3	449 (45.8)	2519 (256.9)	2694 (274.7)	294.2 (30.0)	72.4
PCU-CS15-165-45	165	45	314.86	279.49	314.86	279.49	0	182.66	235	117.34	65	155	111.5	25	62.03	116	70.4	449 (45.8)	2537 (258.7)	2694 (274.7)	294.2 (30.0)	65.5
