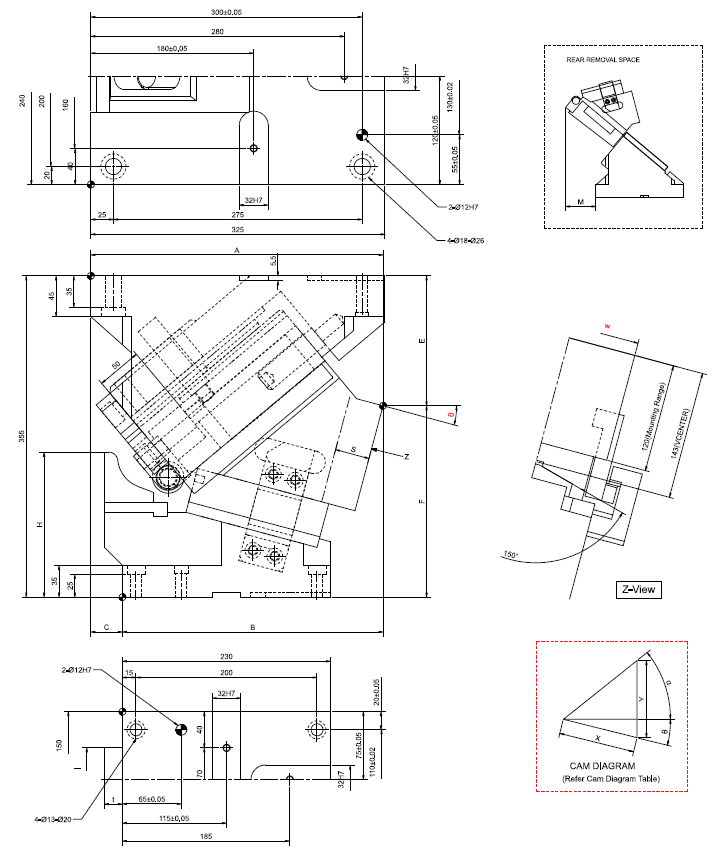

Arial Cam Unit - PCU-CS14-150-(00-30)

Technical Description

Material Type: Refer catalogue for material details

Width (W) : 150 mm

Angle (Φ) : 00 to 30

Order Type : Code-Size (W)-Φ-OC
Example : PCU-CS14-150-00-N13

*For OC option Please refer to our catalogue

Product of: Pawan

Add to cart	CAD File	Item Code	W Mm	Angle	a mm	b mm	c mm	E mm	F mm	h mm	I mm	T mm	M mm	S mm	SL Kg	SL1 Kg	SLM Kg	WF Kg	WFM Kg	wt Kg
		PCU-CS14-150-00	150	0	325	245	80	130	225	105	70	25	46	28.7	862(87.9)	5951(606.8)	7022(716.1)	147.1(15.0)	294.2(30.0)	117.6
		PCU-CS14-150-05	150	5	319.7	259.7	60	133.26	221.74	125	70	25	75	32.2	862(87.9)	6074(619.4)	7022(716.1)	147.1(15.0)	294.2(30.0)	114
		PCU-CS14-150-10	150	10	319.06	274.06	45	137.79	217.21	145	70	25	99	35.9	862(87.9)	6160(628.1)	7022(716.1)	147.1(15.0)	294.2(30.0)	113.4
		PCU-CS14-150-15	150	15	322.98	287.98	35	143.56	211.44	160	70	20	114	39.6	862(87.9)	6246(636.9)	7022(716.1)	147.1(15.0)	294.2(30.0)	111.9
		PCU-CS14-150-20	150	20	326.33	301.33	25	150.51	204.49	180	70	15	127	43.5	862(87.9)	6320(644.5)	7022(716.1)	147.1(15.0)	294.2(30.0)	111.3
		PCU-CS14-150-25	150	25	329.03	314.03	15	158.61	196.39	200	70	10	137	47.7	862(87.9)	6382(650.8)	7022(716.1)	147.1(15.0)	294.2(30.0)	111.2
		PCU-CS14-150-30	150	30	325.98	325.98	0	167.78	187.22	215	_	_	149	52.3	862(87.9)	6431(655.8)	7022(716.1)	147.1(15.0)	294.2(30.0)	110.2
