Product Details

Rear Piller Die Sets - PMSR/PMSRB

Die Set Plate Material:- MS
Pillar &Bush Material:- En353
BallCage Material:- Brass / Aluminium

Pillar& Bush Hardness:- 58 - 62 HRC

Order Type :-Code - D/L
Example : -PMSRB125 X 125 -125 (With Ballcage)
Availability:- 7 Days(Tentative schedule, may vary as per material availability)

Note - Our standard day light is 100mm. Day light to any other specification can be provided. +Die Set as per Customer Drawing can also be manufactured.

Product of: Pawan

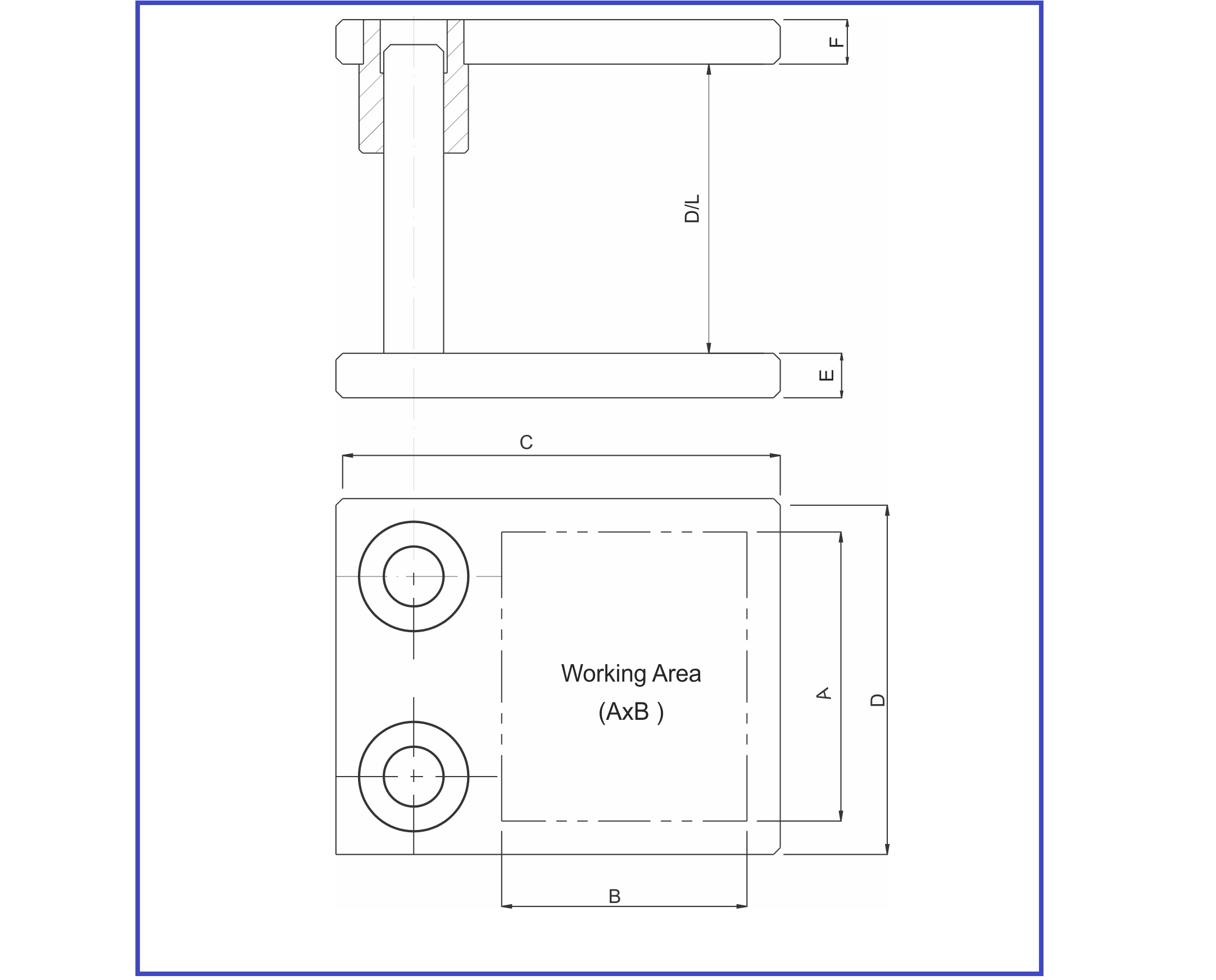

Item Code	A In Mm	B In Mm	Dl In Mm	W In Mm	C (mm)	CD	d (mm)	Do	E (mm)	F (mm)
PMSR 75X75	75	75	100	Plain Sliding	130	64.6	120	20/21	25	25
PMSRBB 75X75	75	75	100	Ballcage	140	57	120	20/21	25	25
PMSR 100X100	100	100	100	Plain Sliding	160	81	140	24/25	32	32
PMSRBB 100X100	100	100	100	Ballcage	170	72	140	24/25	32	32
PMSR 125X125	125	125	100	Plain Sliding	190	106	165	24/25	32	32
PMSRBB 125X125	125	125	100	Ballcage	200	97	165	24/25	32	32
PMSR 150X150	150	150	100	Plain Sliding	220	122.5	190	28/29	32	32
PMSRBB 150X150	150	150	100	Ballcage	230	117	190	28/29	32	32
PMSR 175X175	175	175	100	Plain Sliding	240	142.5	215	34/35	32	32
PMSRBB 175X175	175	175	100	Ballcage	250	137	215	34/35	32	32
PMSR 200X200	200	200	100	Plain Sliding	270	167.5	240	34/35	40	40
PMSRBB 200X200	200	200	100	Ballcage	280	162	240	34/35	40	40
