Product Details

Flange Nut - PCEFN

Material :- En8d
Hardness :- Toughned 28-32 HRC (Toughened)
Surface Coating :- Blackodised.

Length Range :- M12 to M24
Dia (Do) Range :- 25 mm to 47 mm

Order Type :- Flange Nut -Code
Example :- Flange Nut - M20
Availability :- 7 Days
(*Note - This is tentative schedule, may vary as per material availability)

Product of: Pawan
Pawan Logo

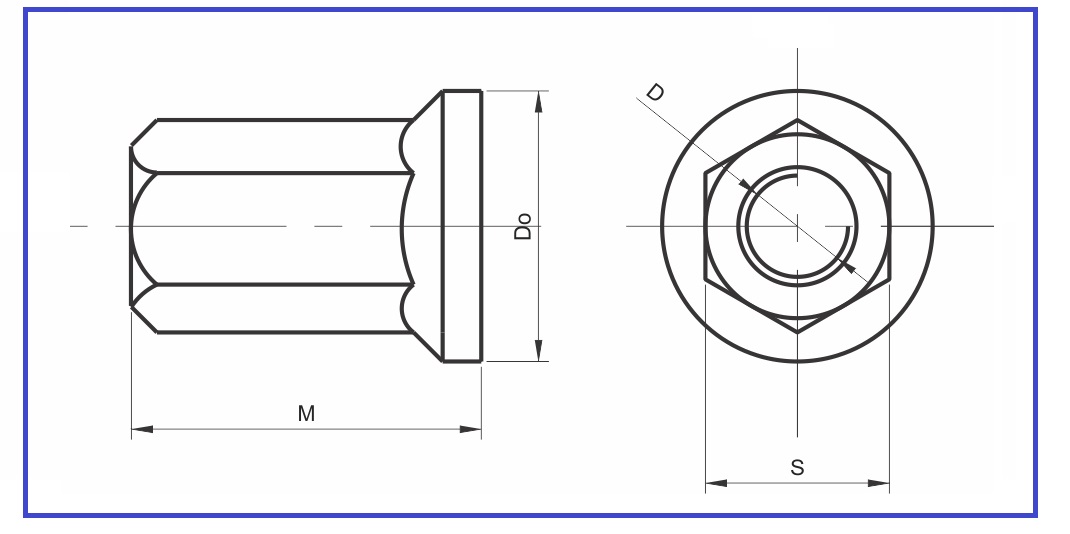

Add to cart CAD File Item Code D (mm)do (mm)M (mm)S (mm)
PCEFN M12M12251819
PCEFN M16M16322424
PCEFN M20M20403030
PCEFN M24M24473636
