Product Details

Technical Description

Bush Material :- FG260 Embedded with solid lubricant

Dia (D1) Range :- 50mm to 130mm

Order Type :- Code X dia (D1)

Example :- PBOF X 50

Availability :- 7 Days
(*Note - This is tentative schedule, may vary as per material availability)

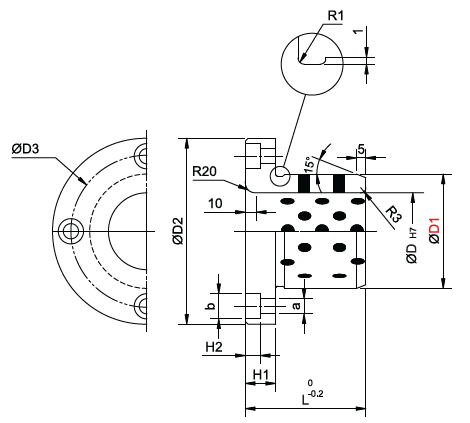

Item Code	D In Mm	L In Mm	D1 mm	D2 Mm	d3 mm	h1 mm	H2 Mm	a mm	b mm
PBOF - 30	30	50	50	90	70	20	10.8	11	17.5
PBOF - 40	40	65	60	100	80	20	10.8	11	17.5
PBOF - 50	50	80	75	125	100	20	10.8	11	17.5
PBOF - 60	60	100	85	135	110	20	10.8	11	17.5
PBOF - 80	80	130	110	170	140	25	13	14	20
PBOF - 100	100	160	130	190	160	25	13	14	20
