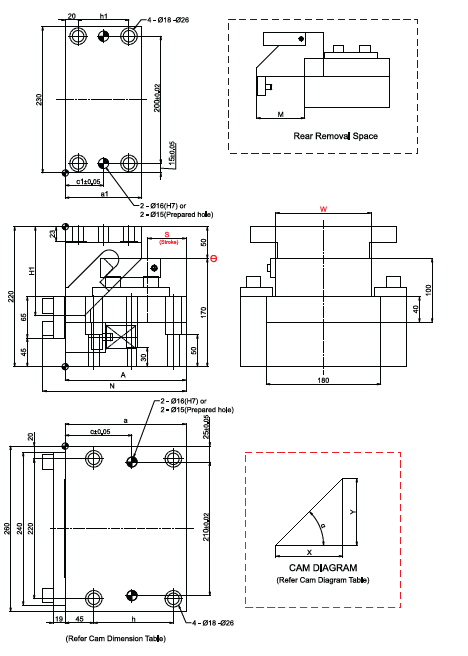

Product Details

Technical Description

Material Type: Refer catalogue for material details

Width (W): 150 mm

Angle (Φ) : 00

Stroke (S) : 40 & 60

Order Type : Code-Size (W)-Φ-Stroke(S)
Example : PCU-CS1-150-00-40

Availability - 20 Days
(*Note - This is tentative schedule, may vary as per material availability)

Item Code	W Mm	v_angle	S Mm	a mm	a1 mm	c mm	C1 mm	h mm	h1 mm	N mm	SL Kg	SL1 Kg	SLM Kg	WF Kg	WFM Kg	wt Kg	x mm
PCU-CS1 - 150-00-40	150	0	40		120	105	60	125	80	225	307 (31.3)	1651 (168.4)	1843 (188.0)	58.8 (6.0)	88.3 (9.0)	63	108
PCU-CS1 - 150-00-60	150	0	60	100	210	140	110	70	100	160	245	333 (33.9)	1741 (177.5)	1869 (190.6)	58.8 (6.0)	88.3 (9.0)	69
