Pawan-ec - Product Details

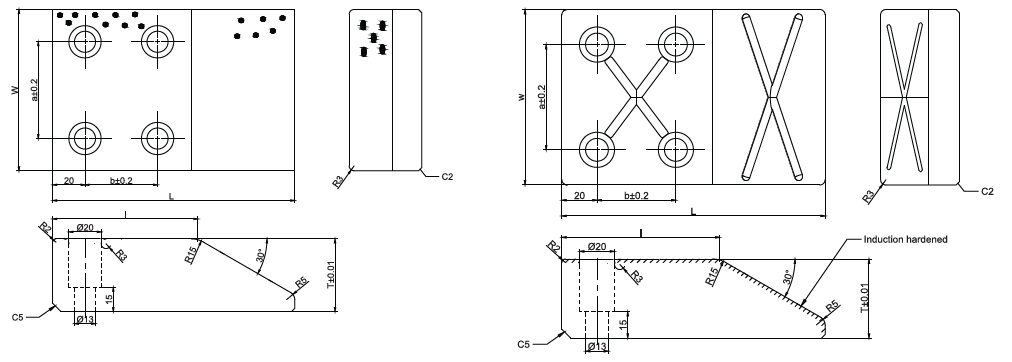

Item Code	Type	W (mm)	L (mm)	A (mm)	B (mm)	t (mm)	L (mm)
PCU-CA7-75-130-B	Type-B	75	130	40	50	30	95
PCU-CA7-75-150-B	Type-B	75	150	40	45	45	90
PCU-CA7-75-170-B	Type-B	75	170	40	45	60	90
PCU-CA7-75-200-B	Type-B	75	200	40	75	60	120
PCU-CA7-100-130-B	Type-B	100	130	60	50	30	95
PCU-CA7-100-150-B	Type-B	100	150	60	45	45	90
PCU-CA7-100-170-B	Type-B	100	170	60	45	60	90
PCU-CA7-100-200-B	Type-B	100	200	60	75	60	120
PCU-CA7-125-130-B	Type-B	125	130	85	50	30	95
PCU-CA7-125-150-B	Type-B	125	150	85	45	45	90
PCU-CA7-125-170-B	Type-B	125	170	85	45	60	90
PCU-CA7-125-200-B	Type-B	125	200	85	75	60	120
PCU-CA7-150-130-B	Type-B	150	130	110	50	30	95
PCU-CA7-150-150-B	Type-B	150	150	110	45	45	90
PCU-CA7-150-170-B	Type-B	150	170	110	45	60	90
PCU-CA7-150-200-B	Type-B	150	200	110	75	60	120
PCU-CA7-75-130-S	Type-S	75	130	40	50	30	95
PCU-CA7-75-150-S	Type-S	75	150	40	45	45	90
PCU-CA7-75-170-S	Type-S	75	170	40	45	60	90
PCU-CA7-75-200-S	Type-S	75	200	40	75	60	120
PCU-CA7-100-130-S	Type-S	100	130	60	50	30	95
PCU-CA7-100-150-S	Type-S	100	150	60	45	45	90
PCU-CA7-100-170-S	Type-S	100	170	60	45	60	90
PCU-CA7-100-200-S	Type-S	100	200	60	75	60	120
PCU-CA7-125-130-S	Type-S	125	130	85	50	30	95
PCU-CA7-125-150-S	Type-S	125	150	85	45	45	90
PCU-CA7-125-170-S	Type-S	125	170	85	45	60	90
PCU-CA7-125-200-S	Type-S	125	200	85	75	60	120
PCU-CA7-150-130-S	Type-S	150	130	110	50	30	95
PCU-CA7-150-150-S	Type-S	150	150	110	45	45	90
PCU-CA7-150-170-S	Type-S	150	170	110	45	60	90
PCU-CA7-150-200-S	Type-S	150	200	110	75	60	120
