Pawan-ec - Product Details

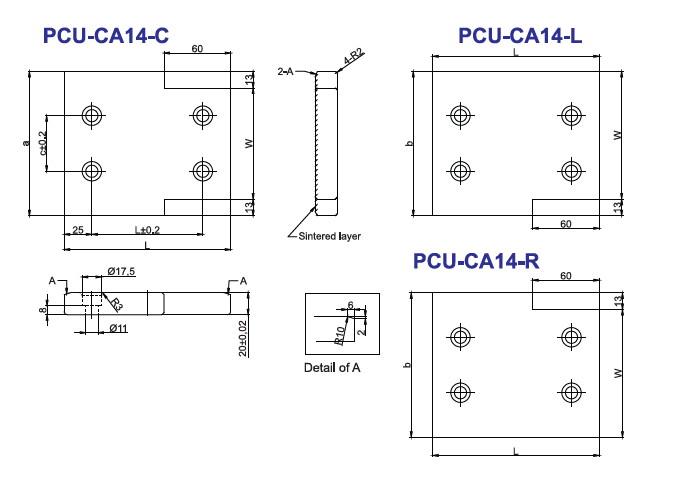

Item Code	Type	W (mm)	L (mm)	L (mm)	A (mm)	B (mm)	C (mm)
PCU-CA14-75-100-C	C-Type	75	100	50	100	87	40
PCU-CA14-75-125-C	C-Type	75	125	75	100	87	40
PCU-CA14-75-150-C	C-Type	75	150	100	100	87	40
PCU-CA14-75-200-C	C-Type	75	200	150	100	87	40
PCU-CA14-75-250-C	C-Type	75	250	200	100	87	40
PCU-CA14-100-150-C	C-Type	100	150	100	125	112	50
PCU-CA14-100-200-C	C-Type	100	200	150	125	112	50
PCU-CA14-100-250-C	C-Type	100	250	200	125	112	50
PCU-CA14-125-150-C	C-Type	125	150	100	150	137	90
PCU-CA14-125-200-C	C-Type	125	200	150	150	137	90
PCU-CA14-75-100-L	L-Type	75	100	50	100	87	40
PCU-CA14-75-125-L	L-Type	75	125	75	100	87	40
PCU-CA14-75-150-L	L-Type	75	150	100	100	87	40
PCU-CA14-75-200-L	L-Type	75	200	150	100	87	40
PCU-CA14-75-250-L	L-Type	75	250	200	100	87	40
PCU-CA14-100-150-L	L-Type	100	150	100	125	112	50
PCU-CA14-100-200-L	L-Type	100	200	150	125	112	50
PCU-CA14-100-250-L	L-Type	100	250	200	125	112	50
PCU-CA14-125-150-L	L-Type	125	150	100	150	137	90
PCU-CA14-125-200-L	L-Type	125	200	150	150	137	90
PCU-CA14-75-100-R	R-Type	75	100	50	100	87	40
PCU-CA14-75-125-R	R-Type	75	125	75	100	87	40
PCU-CA14-75-150-R	R-Type	75	150	100	100	87	40
PCU-CA14-75-200-R	R-Type	75	200	150	100	87	40
PCU-CA14-75-250-R	R-Type	75	250	200	100	87	40
PCU-CA14-100-150-R	R-Type	100	150	100	125	112	50
PCU-CA14-100-200-R	R-Type	100	200	150	125	112	50
PCU-CA14-100-250-R	R-Type	100	250	200	125	112	50
PCU-CA14-125-150-R	R-Type	125	150	100	150	137	90
PCU-CA14-125-200-R	R-Type	125	200	150	150	137	90
