Product Details

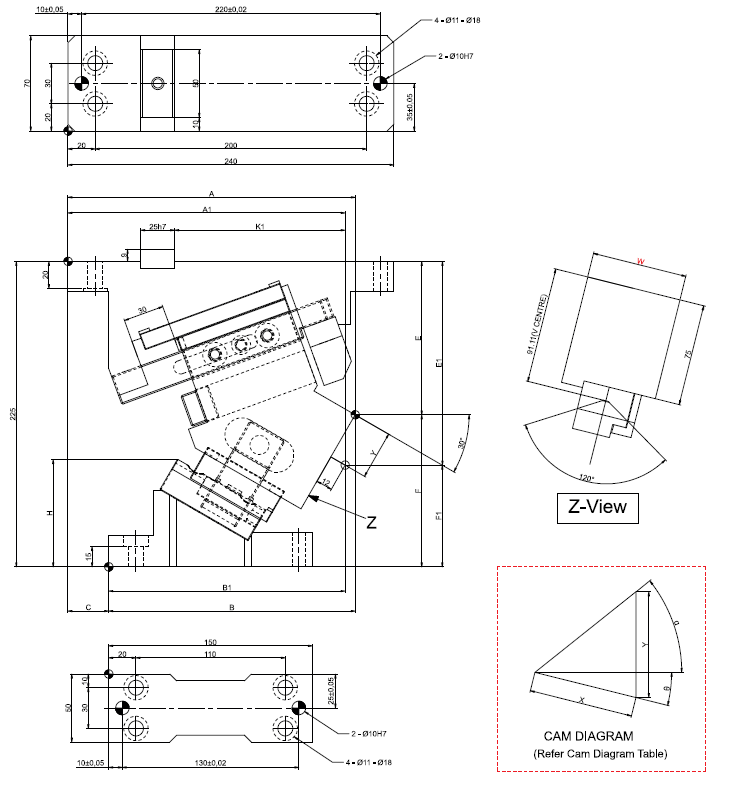

Arial Cam Unit - PCU-CS15-70-(00-40)

Technical Description

Material Type: Refer catalogue for material details

Width (W) : 70 mm

Angle (Φ) : 00 to 40

Order Type : Code-Size (W)-Φ-OC
Example : PCU-CS15-70-00-NF

*For OC option Please refer to our catalogue

Product of: Pawan

Add to cart	CAD File	Item Code	W Mm	Angle	a mm	a1 mm	b mm	b1 mm	c mm	E mm	e1 mm	F mm	f1 mm	h mm	K1 Mm	Y Mm	S mm	SL Kg	SL1 Kg	SLM Kg	WF Kg	wt Kg
		PCU-CS15-70-00	70	0	237.37	249.37	135.37	147.37	102	85	120	140	105	46.4	155.5	35	19.3	69 (7.0)	504(51.4)	657(67.0)	98.1 (10.0)	16.1
		PCU-CS15-70-05	70	5	234.87	243.53	142.87	151.53	92	86.28	125	138.72	100	53.9	149.5	37.82	21.3	69 (7.0)	519(53.0)	657(67.0)	98.1 (10.0)	15.4
		PCU-CS15-70-10	70	10	232.82	237.74	151.82	156.74	81	88.76	130	136.24	95	60.9	145	39.76	23.3	69 (7.0)	531(54.2)	657(67.0)	98.1 (10.0)	14.8
		PCU-CS15-70-15	70	15	217.54	219.67	160.54	162.67	57	96.59	135	128.41	90	63.1	140.5	36.55	25.4	69 (7.0)	541(55.2)	657(67.0)	98.1 (10.0)	14.1
		PCU-CS15-70-20	70	20	224.52	222.62	172.52	170.62	52	99.67	140	125.33	85	70.5	134.5	38.55	27.6	69 (7.0)	551(56.2)	657(67.0)	98.1 (10.0)	14.1
		PCU-CS15-70-25	70	25	223.46	218.26	181.46	176.26	42	105.45	145	119.55	80	75.7	130	38.04	30	69 (7.0)	559(57.0)	657(67.0)	98.1 (10.0)	14
		PCU-CS15-70-30	70	30	211.54	204.03	181.54	174.03	30	112.99	150	112.01	75	79.4	125.5	35.81	32.6	69 (7.0)	566(57.8)	657(67.0)	98.1 (10.0)	13.8
		PCU-CS15-70-35	70	35	210.68	198.86	193.68	181.86	17	117.2	155	107.8	70	86.8	119.5	37.74	35.4	69 (7.0)	574(58.6)	657(67.0)	98.1 (10.0)	13.7
		PCU-CS15-70-40	70	40	204.84	191.19	200.84	187.19	4	125.07	160	99.93	65	90.6	115	35.53	38.6	69 (7.0)	580(59.2)	657(67.0)	98.1 (10.0)	13.8

Related Products

Extra Heavy Load Spring - PYE

Oilless Bush (C.I .Casting) - PBOB

Oilless Bush (High Strength Brass) - PBOC

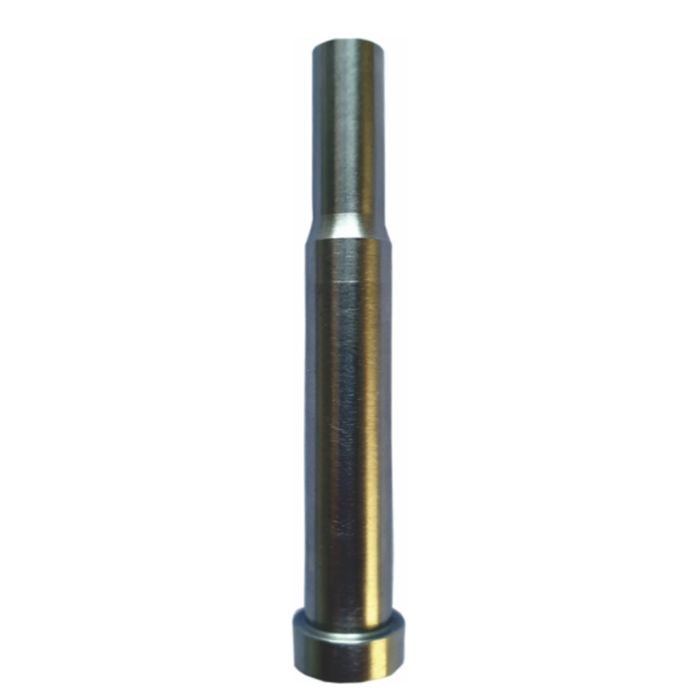

Piercing Punch - PCC

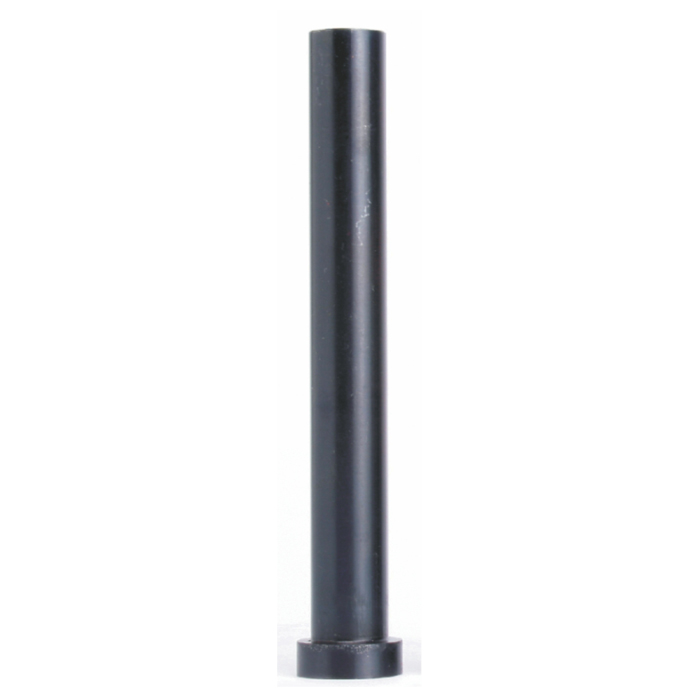

Ejector Pins And Sleeves
