Product Details

Technical Description

Piller Material :- En353/20MnCr5
Piller Hardness :- 55-60HRC

Dia (D)Range :- 25mm to 100mm
Length (L) Range :- 80mm to 500mm

Order Type :- Code x D X L
Example :- PPO X 50 X 200
Availability :- 3/4 days

(*Note - This is tentative schedule, may vary as per material availability)

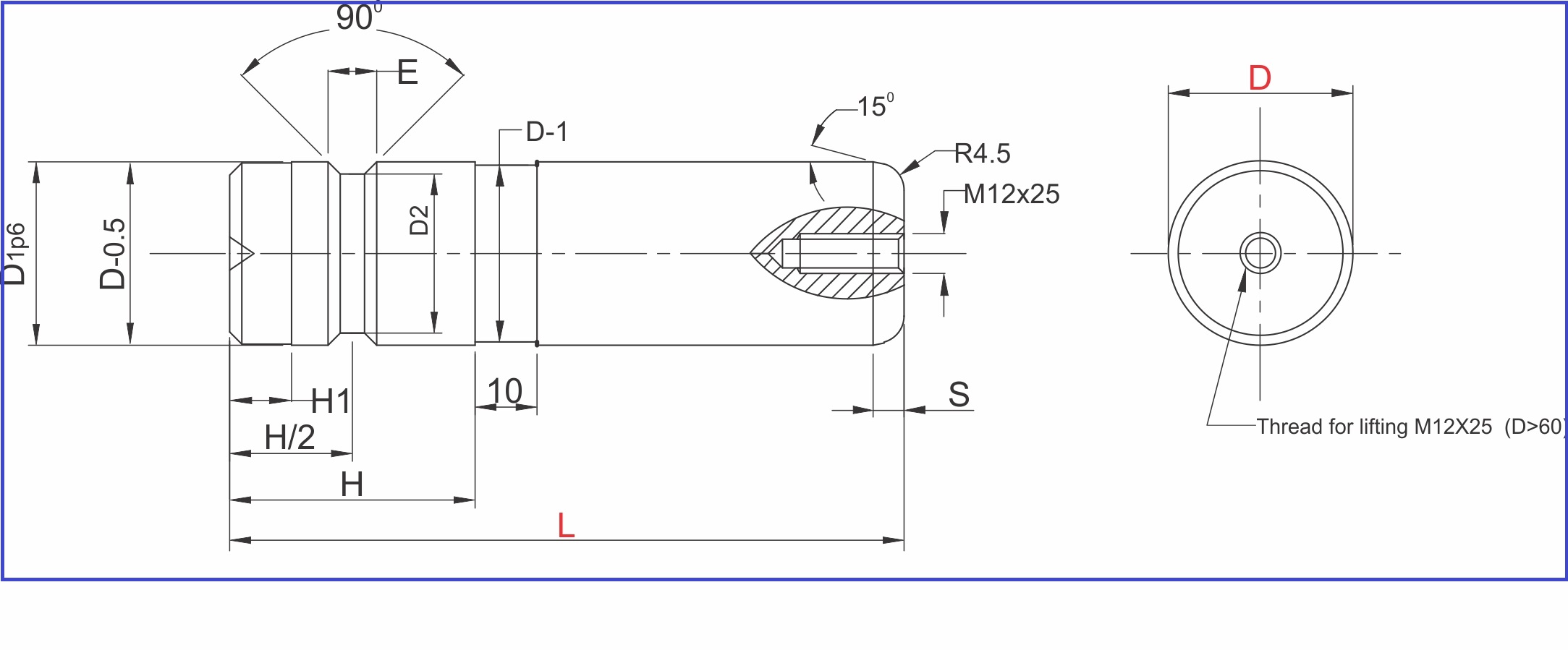

Item Code	D In Mm	Length (mm)	D1p6 In Mm	D2 In Mm	H In Mm
PPO X 25 X 80	25	80	25	21	30
PPO X 25 X 100	25	100	25	21	30
PPO X 25 X 120	25	120	25	21	30
PPO X 25 X 140	25	140	25	21	30
PPO X 25 X 160	25	160	25	21	30
PPO X 30 X 100	30	100	30	26	40
PPO X 30 X 120	30	120	30	26	40
PPO X 30 X 140	30	140	30	26	40
PPO X 30 X 160	30	160	30	26	40
PPO X 30 X 180	30	180	30	26	40
PPO X 30 X 200	30	200	30	26	40
PPO X 40 X 120	40	120	40	36	50
PPO X 40 X 140	40	140	40	36	50
PPO X 40 X 160	40	160	40	36	50
PPO X 40 X 180	40	180	40	36	50
PPO X 40 X 200	40	200	40	36	50
PPO X 50 X 160	50	160	50	45	70
PPO X 50 X 180	50	180	50	45	70
PPO X 50 X 200	50	200	50	45	70
PPO X 50 X 250	50	250	50	45	70
PPO X 50 X 300	50	300	50	45	70
PPO X 60 X 200	60	200	60	55	90
PPO X 60 X 220	60	220	60	55	90
PPO X 60 X 250	60	250	60	55	90
PPO X 60 X 300	60	300	60	55	90
PPO X 60 X 350	60	350	60	55	90
PPO X 65 X 250	65	250	65	60	100
PPO X 65 X 300	65	300	65	60	100
PPO X 65 X 350	65	350	65	60	100
PPO X 80 X 250	80	250	80	75	120
PPO X 80 X 300	80	300	80	75	120
PPO X 80 X 350	80	350	80	75	120
PPO X 80 X 400	80	400	80	75	120
PPO X 100 X 300	100	300	100	95	150
PPO X 100 X 350	100	350	100	95	150
PPO X 100 X 400	100	400	100	95	150
PPO X 100 X 450	100	450	100	95	150
PPO X 100 X 500	100	500	100	95	150
