Product Details

Technical Description

Material Type: Refer catalogue for material details

Width (W): 150 mm

Angle (Φ) : 05 - 20

Stroke (S) : 45 & 70

Order Type : Code-Size (W)-Φ-Stroke(S)
Example : PCU-CS1-150-05-45

Availability - 20 Days
(*Note - This is tentative schedule, may vary as per material availability)

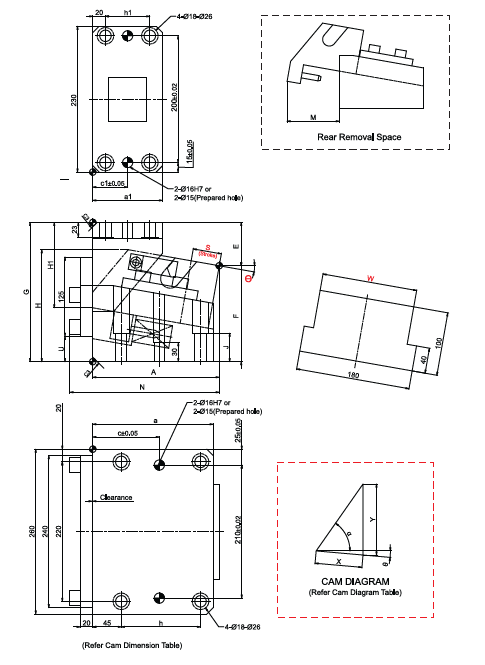

Item Code	W Mm	v_angle	S Mm	a mm	a1 mm	c mm	C1 mm	E mm	F mm	G mm	h mm	h1 mm	J mm	N mm	SL Kg	SL1 Kg	SLM Kg	U mm	WF Kg	WFM Kg	wt Kg	x mm
PCU-CS1 - 150-05-45	150	5	45	193.01	110	105	55	61.5	158.5	220	170.2	70	35	229.01	431 (44.0)	1663 (169.6)	1817 (185.3)	30	64.7 (6.6)	98.1 (10.0)	62	115
PCU-CS1 - 150-05-70	150	5	70	217.92	130	120	65	53.68	166.32	220	180.6	90	45	253.92	305 (31.4)	1738 (177.2)	1848 (188.4)	40	64.7 (6.6)	98.1 (10.0)	73	103
PCU-CS1 - 150-10-45	150	10	45	199.55	110	105	55	68.64	151.36	220	176.7	70	45	235.55	431 (44.0)	1663 (169.6)	1817 (185.3)	40	64.7 (6.6)	98.1 (10.0)	63	121
PCU-CS1 - 150-10-70	150	10	70	224.17	130	120	65	67.98	152.02	220	180.5	90	45	260.17	305 (31.4)	1738 (177.2)	1848 (188.4)	40	64.7 (6.6)	98.1 (10.0)	73	110
PCU-CS1 - 150-15-45	150	15	45	204.58	120	105	60	76.29	143.71	220	179.6	80	45	240.58	431 (44.0)	1663 (169.6)	1817 (185.3)	40	64.7 (6.6)	98.1 (10.0)	65	126
PCU-CS1 - 150-15-70	150	15	70	228.73	140	120	70	77.76	152.24	230	194.6	155	60	264.73	305 (31.4)	1738 (177.2)	1848 (188.4)	55	64.7 (6.6)	98.1 (10.0)	77	111
PCU-CS1 - 150-20-45	150	20	45	208.05	120	105	60	84.3	135.7	220	183.2	80	45	244.05	431 (44.0)	1663 (169.6)	1817 (185.3)	40	64.7 (6.6)	98.1 (10.0)	66	113
PCU-CS1 - 150-20-70	150	20	70	231.54	140	120	70	92.85	137.15	230	193.2	155	60	267.54	305 (31.4)	1738 (177.2)	1848 (188.4)	55	64.7 (6.6)	98.1 (10.0)	75	113
