Product Details

Positive Return Follower (PCU-CA25)-B,S

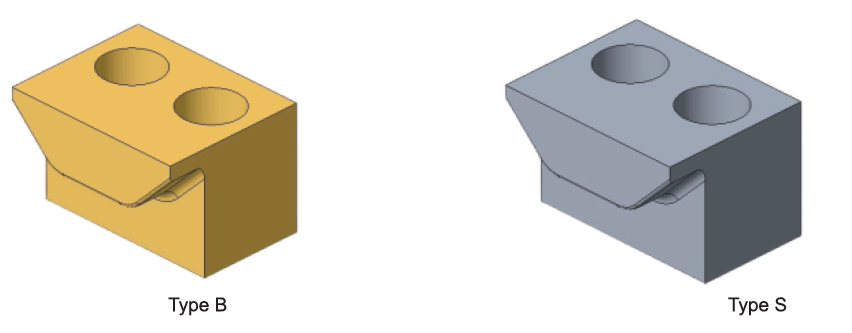

Material : 1. Copper alloy -For Type-B

2. EN8 -For Type-S

Hardness : 55-58 HRC (Induction Hardened)

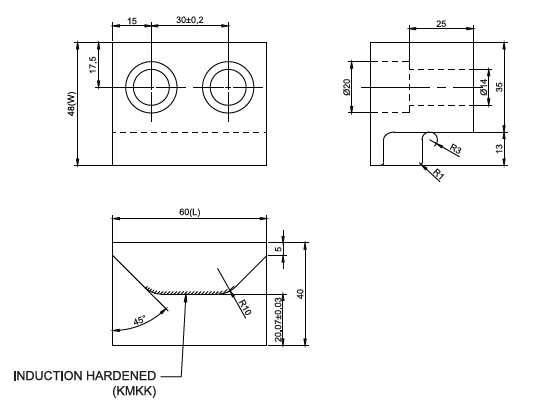

Width (W) : 48 mm

Length (L) : 60 mm

Order Type : PCU-CA25-W-L-Type

Example : PCU-CA25-48-60-B (Type-B)

PCU-CA25-48-60-S (Type-S)

Product of: Pawan

Add to cart	CAD File	Item Code	Type	W (mm)	L (mm)
		PCU-CA25-48-60-B	Type-B	48	60
		PCU-CA25-48-60-S	Type-S	48	60
