Product Details

Arial Cam Unit - PCU-CS9-200-(00-70)

Technical Description

Material Type: Refer catalogue for material details

Width (W) : 200 mm

Angle (Φ) : 00 to 70

Order Type : Code-Size (W)-Φ-OC
Example : PCU-CS9-200-10-K

*For OC option Please refer to our catalogue

Product of: Pawan

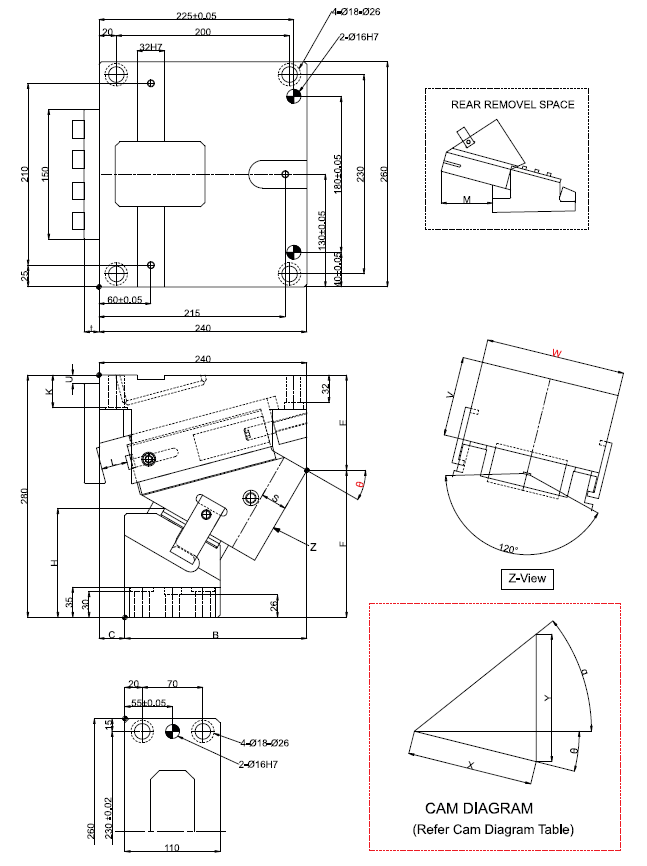

Add to cart	CAD File	Item Code	W Mm	Angle	a mm	b mm	c mm	E mm	F mm	k mm	l mm	U mm	V Mm	M mm	S mm	SL Kg	SLM Kg	WF Kg	WFM Kg	wt Kg
		PCU-CS9-200-00	200	0	240	160	80	85	195	38	40	55	100	83	28.3	626.0(63.9)	5634.0(574.9)	93.1(9.5)	186.2(19.0)	26
		PCU-CS9-200-05	200	5	228.66	168.66	60	80	200	38	40	55	120	83	28.3	626.6(63.9)	5639.4(575.1)	93.1(9.5)	186.2(19.0)	30.4
		PCU-CS9-200-10	200	10	240	180	60	90	190	38	40	35	100	96	33.3	626.6(63.9)	5639.4(575.1)	93.1(9.5)	186.2(19.0)	24.8
		PCU-CS9-200-15	200	15	244.4	194.14	50	90	190	38	40	35	120	96	33.9	626.6(63.9)	5639.4(575.1)	93.1(9.5)	186.2(19.0)	30.6
		PCU-CS9-200-20	200	20	240	190	50	110	170	38	32	15	100	116	30.9	438.6(44.7)	5117.0(221.8)	93.1(9.5)	186.2(19.0)	25.9
		PCU-CS9-200-25	200	25	241.36	201.36	40	110	170	38	32	15	120	116	32	438.6(44.7)	5117.0(221.8)	93.1(9.5)	186.2(19.0)	29.9
		PCU-CS9-200-30	200	30	240	210	30	110	170	38	30	10	120	127	33.5	350.9(35.8)	5614.1(572.5)	93.1(9.5)	186.2(19.0)	29.5
		PCU-CS9-200-35	200	35	249.78	219.78	30	100	180	38	30	10	140	127	35.3	350.9(35.8)	5614.1(572.5)	93.1(9.5)	186.2(19.0)	30.9
		PCU-CS9-200-40	200	40	240	210	30	115	165	38	30	10	120	130	39	350.9(35.8)	5614.1(572.5)	93.1(9.5)	186.2(19.0)	30.2
		PCU-CS9-200-45	200	45	247.09	232.09	15	115	165	38	30	10	140	129	42.2	350.9(35.8)	5614.1(572.5)	93.1(9.5)	186.2(19.0)	31.9
		PCU-CS9-200-50	200	50	240	230	10	120	160	30	30	0	140	132	46.7	350.9(35.8)	5614.1(572.5)	93.1(9.5)	186.2(19.0)	32.4
		PCU-CS9-200-55	200	55	234.73	234.73	0	140	140	30	30	0	140	132	52.3	350.9(35.8)	5614.1(572.5)	93.1(9.5)	186.2(19.0)	31.9
		PCU-CS9-200-60	200	60	240	240	0	145	135	30	30	0	140	132	60	350.9(35.8)	5614.1(572.5)	93.1(9.5)	186.2(19.0)	33.5
		PCU-CS9-200-65	200	65	245.98	245.98	0	165	115	30	30	0	140	134	70.9	350.9(35.8)	5614.1(572.5)	93.1(9.5)	186.2(19.0)	31.9
		PCU-CS9-200-70	200	70	240	240	0	145	135	30	20	0	140	142	58.5	1096.6(111.8)	5483.0(559.1)	93.1(9.5)	186.2(19.0)	30.2
