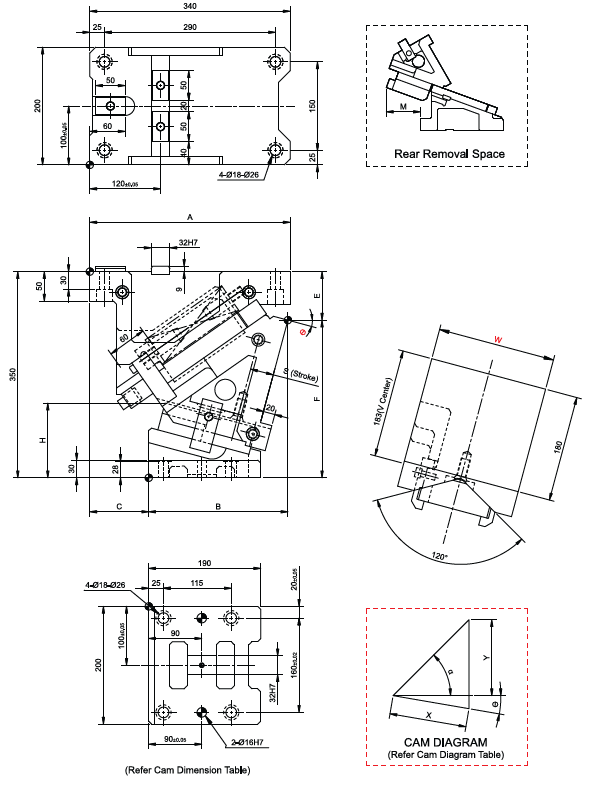

Arial Cam Unit - PCU-CS4-200-(00-40)

Technical Description

Material Type: Refer catalogue for material details

Width (W) : 200 mm

Angle (Φ) : 00 to 40



Order Type : Code-Size (W)-Φ-OC
Example : PCU-CS4-200-00-N

*For OC option Please refer to our catalogue

Product of: Pawan
Pawan Logo
Add to cart CAD File Item Code W MmAnglea mmb mmc mmE mmF mmh mmM mmS mmSL KgSL1 KgSLM KgWF KgWFM Kgwt Kg
PCU-CS4-200-002000313175138582921024738.6817(83.3)4372(445.8)4903(500.0)117.7(12.0)235.4(24.0)95
PCU-CS4-200-052005320.64195.6412564.34285.66110.86142.6817(83.3)4427(451.4)4903(500.0)117.7(12.0)235.4(24.0)94.8
PCU-CS4-200-1020010331.08216.0811572.47277.53119.17046.7817(83.3)4467(455.5)4903(500.0)117.7(12.0)235.4(24.0)94.6
PCU-CS4-200-1520015336.17236.1710082.37267.63126.88050.9817(83.3)4501(459.0)4903(500.0)117.7(12.0)235.4(24.0)93.3
PCU-CS4-200-2020020340.76255.768594256133.98855.3817(83.3)4535(462.5)4903(500.0)117.7(12.0)235.4(24.0)92.7
PCU-CS4-200-3020030347.83292.8355112.25237.75155.710365.1817(83.3)4590(468.0)4903(500.0)117.7(12.0)235.4(24.0)92.7
PCU-CS4-200-4020040351.17326.1725136.66213.34173.911677.1817(83.3)4638(472.9)4903(500.0)117.7(12.0)235.4(24.0)94.2
