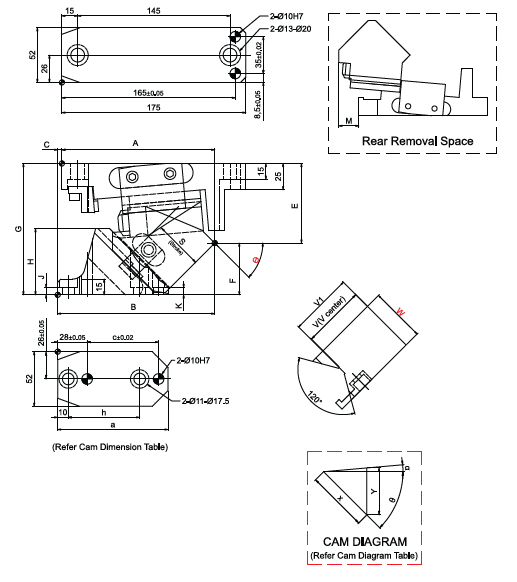

Arial Cam Unit - PCU-CS3-52-(45-80)

Technical Description

Material Type: Refer catalogue for material details

Width (W) : 52 mm

Angle (Φ) : 45 to 80

Order Type : Code-Size (W)-Φ-OC(*)
Example : PCU-CS3-52-45-SC

*For OC option Please refer to our catalogue

Product of: Pawan

Add to cart	CAD File	Item Code	W Mm	Angle	a mm	b mm	c mm	E mm	F mm	G mm	h mm	J mm	k mm	l mm	V Mm	V1 Mm	M mm	S mm	SL Kg	SL1 Kg	SLM Kg	WF Kg	WFM Kg	wt Kg
		PCU-CS3-52-45	52	45	105	149.41	68	75.73	49.27	125	68	7	7	30	59	60	31	42.3	245(25.0)	894(91.2)	980(99.9)	14.7(1.5)	29.4(3.0)	5
		PCU-CS3-52-50	52	50	105	152.92	68	79.43	45.57	125	68	12	7	30	59	60	32	46.7	245(25.0)	902(91.9)	980(99.9)	14.7(1.5)	29.4(3.0)	5
		PCU-CS3-52-55	52	55	105	154.67	68	82.97	42.03	125	68	12	7	30	59	60	33	52.3	245(25.0)	909(92.7)	980(99.9)	14.7(1.5)	29.4(3.0)	5
		PCU-CS3-52-60	52	60	105	159.69	68	90.28	34.72	125	68	12	7	30	59	60	26	60	327(33.3)	919(93.7)	980(99.9)	14.7(1.5)	29.4(3.0)	5.2
		PCU-CS3-52-65	52	65	105	175.16	68	99.54	25.46	125	68	12	15	20	59	60	43	47.3	327(33.3)	912(93.0)	981(100.0)	14.7(1.5)	29.4(3.0)	5.9
		PCU-CS3-52-70	52	70	105	173.62	68	106.97	18.03	125	68	12	15	20	59	60	38	58.5	327(33.3)	925(94.4)	981(100.0)	14.7(1.5)	29.4(3.0)	5.9
		PCU-CS3-52-75	52	75	111	178.74	55	124.59	25.41	150	55	12	15	12	70	70	47	46.3	436(44.5)	910(92.8)	981(100.0)	14.7(1.5)	29.4(3.0)	7.8
		PCU-CS3-52-80	52	80	110	178.74	55	124.59	25.41	150	55	12	15	10	70	70	47	57.5	436(44.5)	556(56.7)	981(100.0)	14.7(1.5)	29.4(3.0)	7.7
