Product Details

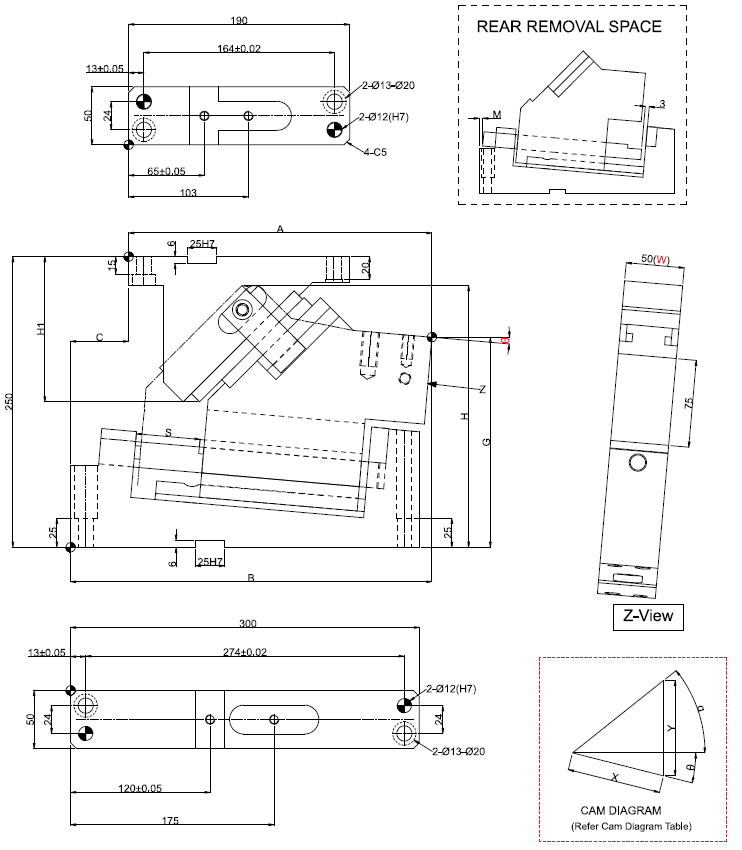

Technical Description

Material Type: Refer catalogue for material details

Width (W) : 50 mm

Angle (Φ) : 00 to 20

Order Type : Code-Size (W)-Φ-OC
Example : PCU-CS11-50-10-K

*For OC option Please refer our catalogue

Item Code	W Mm	Angle	a mm	b mm	c mm	F mm	G mm	h mm	SLM Kg	WF Kg	WFM Kg	wt Kg
PCU-CS11-50-00	50	0	260	300	40	136.2	191	221.4	2270(231.6)	29.4(3.0)	29.4(3.0)	19.1
PCU-CS11-50-05	50	5	260.76	310.8	50	128.6	180.73	224.9	2270(231.6)	29.4(3.0)	29.4(3.0)	19.2
PCU-CS11-50-10	50	10	263.12	318.1	55	118.1	169.8	227.4	2270(231.6)	29.4(3.0)	29.4(3.0)	19.4
PCU-CS11-50-15	50	15	260.02	325	65	107.4	162.25	232.8	2270(231.6)	29.4(3.0)	29.4(3.0)	19.9
PCU-CS11-50-20	50	20	261.41	331.4	70	96.1	155.12	238.1	2270(231.6)	29.4(3.0)	29.4(3.0)	20.5
