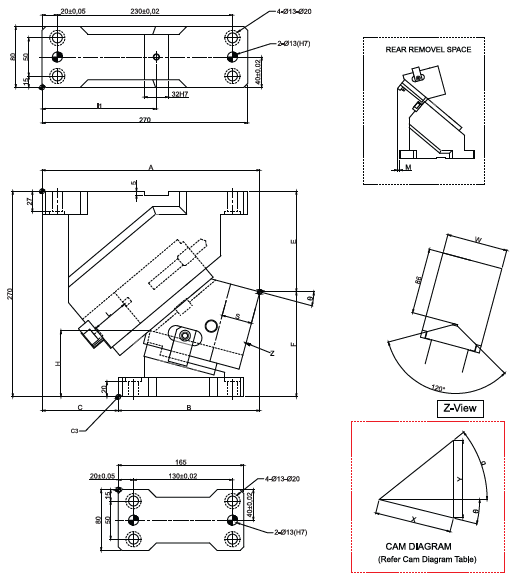

Item Code	W Mm	Angle	a mm	b mm	c mm	E mm	F mm	h mm	l mm	L1 mm	M mm	S mm	SL Kg	SL1 Kg	SLM Kg	WF Kg	WFM Kg	wt Kg
PCU-CS2.1-80-00	80	0	260	160	100	99	171	83	50	130	12	32.1	123(12.5)	1300(132.6)	3250(331.4)	54.9(5.6)	109.8(11.2)	25.9
PCU-CS2.1-80-05	80	5	272.93	172.93	100	109.39	160.61	83.8	50	150	17	38.4	123(12.5)	1625(165.7)	3250(331.4)	54.9(5.6)	109.8(11.2)	26.3
PCU-CS2.1-80-10	80	10	279.92	179.92	100	120.43	149.57	84.6	50	150	17	38.9	123(12.5)	1650(168.3)	3250(331.4)	54.9(5.6)	109.8(11.2)	26.6
PCU-CS2.1-80-15	80	15	285.93	185.93	100	132.04	137.96	85.3	50	150	17	39.7	123(12.5)	1675(170.8)	3250(331.4)	54.9(5.6)	109.8(11.2)	25.1
PCU-CS2.1-80-20	80	20	285.9	195.9	90	129.12	140.88	100.9	50	170	27	46.1	123(12.5)	1900(193.7)	3250(331.4)	54.9(5.6)	109.8(11.2)	25.3
PCU-CS2.1-80-25	80	25	289.8	199.8	90	141.6	128.4	101.5	50	170	27	47.8	123(12.5)	1950(198.8)	3250(331.4)	54.9(5.6)	109.8(11.2)	25.3
PCU-CS2.1-80-30	80	30	282.59	207.59	75	134.36	135.64	121.9	50	170	36	54.3	123(12.5)	2100(214.1)	3250(331.4)	54.9(5.6)	109.8(11.2)	23.2
PCU-CS2.1-80-35	80	35	284.27	209.27	75	147.32	122.68	122.3	50	170	36	57.4	123(12.5)	2150(219.2)	3250(331.4)	54.9(5.6)	109.8(11.2)	23.4
PCU-CS2.1-80-40	80	40	274.8	214.8	60	140.38	129.62	142.6	50	170	45	64.3	123(12.5)	2275(232.0)	3250(331.4)	54.9(5.6)	109.8(11.2)	22.4
PCU-CS2.1-80-45	80	45	274.2	214.2	60	153.44	116.56	142.7	50	170	45	69.6	123(12.5)	2350(239.6)	3250(331.4)	54.9(5.6)	109.8(11.2)	22.4
PCU-CS2.1-80-50	80	50	262.46	227.46	35	151.39	118.61	157.8	50	170	57	77.8	123(12.5)	2450(249.8)	3250(331.4)	54.9(5.6)	109.8(11.2)	21.6
PCU-CS2.1-80-55	80	55	259.6	224.6	35	164.14	105.86	157.8	50	170	56	87.2	123(12.5)	2525(257.5)	3250(331.4)	54.9(5.6)	109.8(11.2)	21.7
