Product Details

Technical Description

Material Type: Refer catalogue for material details

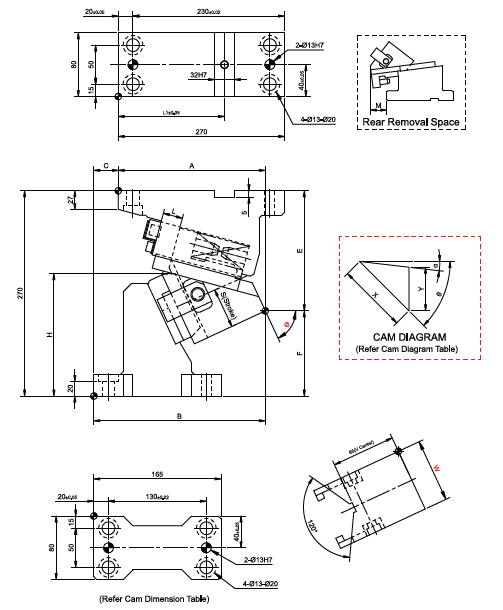

Width (W) : 80 mm

Angle (Φ) : 60 to 70

Order Type : Code-Size (W)-Φ-OC
Example : PCU-CS2-80-65-K

*For OC option Please refer to our catalogue

Item Code	W Mm		a mm	b mm	c mm	E mm	F mm	G mm	h mm	l mm	L1 mm	M mm	S mm	SL Kg	SL1 Kg	SLM Kg	WF Kg	WFM Kg	wt Kg
PCU-CS2-80-60	80	60	240.64	240.64	0	176.59	93.41	176.59	157.7	50	170	75	98.5	270(27.5)	1553(158.3)	1620(165.2)	39.2(4.0)	78.5(8.0)	23.2
PCU-CS2-80-65	80	65	235.61	240.61	5	188.65	81.35	188.65	157.4	35	170	74	81.6	323(32.9)	1386(141.3)	1554(148.2)	39.2(4.0)	78.5(8.0)	23.7
PCU-CS2-80-70	80	70	227.83	237.83	10	195.53	74.47	195.53	157.1	30	170	75	86.4	404(41.2)	1547(157.8)	1616(164.8)	39.2(4.0)	78.5(8.0)	23.9
