Product Details

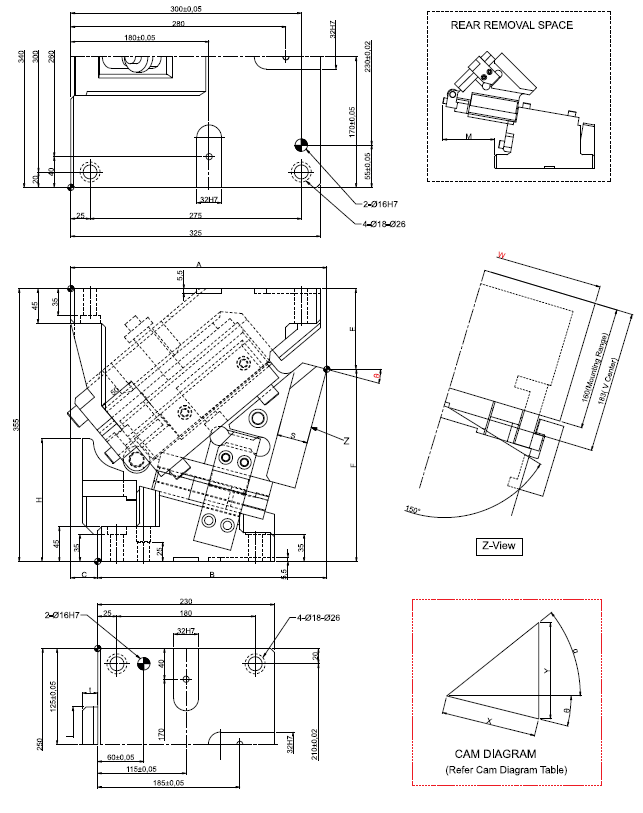

Arial Cam Unit - PCU-CS14-300-(00-30)

Technical Description

Material Type: Refer catalogue for material details

Width (W) : 300 mm

Angle (Φ) : 00 to 30

Order Type : Code-Size (W)-Φ-OC
Example : PCU-CS14-300-00-K

*For OC option Please refer to our catalogue

Product of: Pawan

Add to cart	CAD File	Item Code	W Mm		a mm	b mm	c mm	E mm	F mm	h mm	l mm	T mm	M mm	S mm	SL Kg	SL1 Kg	SLM Kg	WF Kg	WFM Kg	wt Kg
		PCU-CS14-300-00	300	0	325	245	80	90	265	105	100	25	46	28.6	1725(175.9)	11901(1213.6)	14045(1432.2)	294.2(30.0)	588.4(60.0)	184.5
		PCU-CS14-300-05	300	5	323.19	263.19	60	93.41	261.59	125	100	25	75	32.2	1725(175.9)	12148(1238.7)	14045(1432.2)	294.2(30.0)	588.4(60.0)	181
		PCU-CS14-300-10	300	10	326.01	281.01	45	98.4	256.6	145	100	25	99	35.9	1725(175.9)	12320(1256.3)	14045(1432.2)	294.2(30.0)	588.4(60.0)	178.7
		PCU-CS14-300-15	300	15	333.33	298.33	35	104.92	250.08	159.5	100	20	114	39.6	1725(175.9)	12492(1273.9)	14045(1432.2)	294.2(30.0)	588.4(60.0)	177.3
		PCU-CS14-300-20	300	20	340.02	315.02	25	112.93	242.07	180	100	15	127	43.5	1725(175.9)	12640(1289.0)	14045(1432.2)	294.2(30.0)	588.4(60.0)	176
		PCU-CS14-300-25	300	25	345.94	330.94	15	122.35	232.65	200	100	10	137	47.7	1725(175.9)	12764(1301.5)	14045(1432.2)	294.2(30.0)	588.4(60.0)	174.9
		PCU-CS14-300-30	300	30	345.98	345.98	0	133.13	221.87	215	_	_	149	52.3	1725(175.9)	12862(1311.6)	14045(1432.2)	294.2(30.0)	588.4(60.0)	173.8
