Product Details

Technical Description

Material Type: Refer catalogue for material details

Width (W): 100 mm

Angle (Φ) : 00

Stroke (S) : 40, 60 & 80

Order Type : Code-Size (W)-Φ-Stroke(S)
Example : PCU-CS1-100-00-40

Availability - 20 Days
(*Note - This is tentative schedule, may vary as per material availability)

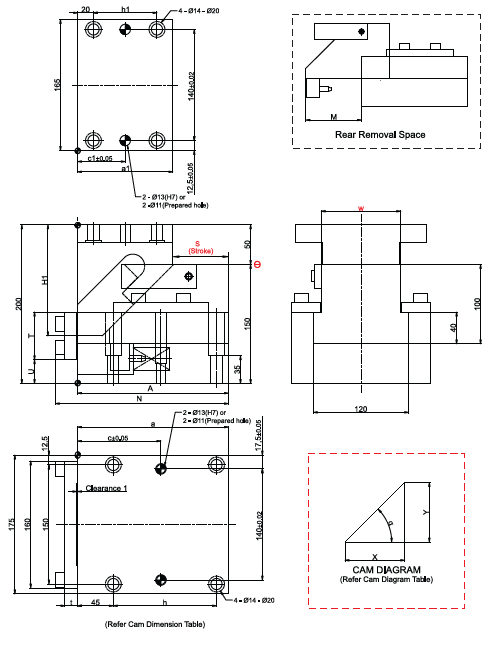

Item Code	W Mm	v_angle	S Mm	a mm	a1 mm	c mm	C1 mm	h mm	h1 mm	N mm	SL Kg	SL1 Kg	SLM Kg	T mm	U mm	WF Kg	WFM Kg	wt Kg	x mm
PCU-CS1 - 100-00-40	100	0	40	190	120	105	60	130	80	218	189 (19.3)	1015 (103.5)	1133 (115.5)	60	30	29.4 (3.0)	58.8 (6.0)	37	100
PCU-CS1 - 100-00-60	100	0	60	210	140	105	70	130	160	238	203 (20.7)	1061 (108.2)	1139 (116.1)	60	30	29.4 (3.0)	58.8 (6.0)	38	100
PCU-CS1 - 100-00-80	100	0	80	250	150	135	75	160	170	277	170 (17.4)	1235 (126.0)	1306 (133.2)	115	10	29.4 (3.0)	58.8 (6.0)	44	110
