Product Details

Technical Description

Material : Copper alloy special solid lubricant (embedded)

Width (W) : 65 mm

Length (L) : 100 to 300 mm

Order Type : PCU-CA3-W-L

Example : PCU-CA3-65-100

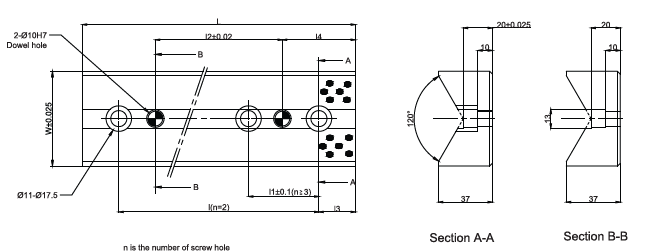

Item Code	W (mm)	L (mm)	l mm	L1 mm	L2 Mm	L3 Mm	L4 Mm	N (holes)
PCU-CA3-65-100	65	100	60	-	20	20	40	2
PCU-CA3-65-125	65	125	75	-	25	25	50	2
PCU-CA3-65-150	65	150	100	-	50	25	50	2
PCU-CA3-65-200	65	200	-	75	100	25	50	3
PCU-CA3-65-250	65	250	-	100	150	25	50	3
PCU-CA3-65-300	65	300	-	125	200	25	50	3
