Product Details

Material : Copper alloy Special solid lubricant(embedded)

Width (W) : 60,100 & 150 mm

Length (L) : 120-160 mm

Order Type : PCU-CA11-W-L

Example : PCU-CA11-B-60-120

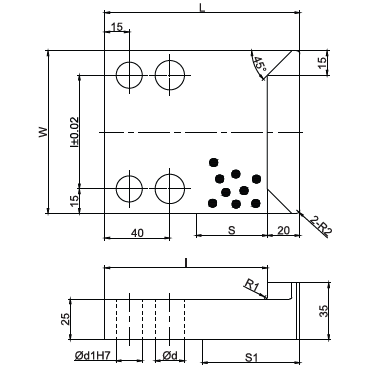

Item Code	W (mm)	L (mm)	S (mm)	S1 (mm)	L (mm)	L1 (mm)
PCU-CA11-60-120	60	120	40	60	100	30	13	13
PCU-CA11-60-140	60	140	60	80	120	30	13	13
PCU-CA11-60-160	60	160	80	100	140	30	13	13
PCU-CA11-100-120	100	120	40	60	100	70	18	16
PCU-CA11-100-140	100	140	60	80	120	70	18	16
PCU-CA11-100-160	100	160	80	100	140	70	18	16
PCU-CA11-150-120	150	120	40	60	100	120	18	16
PCU-CA11-150-140	150	140	60	80	120	120	18	16
PCU-CA11-150-160	150	160	80	100	140	120	18	16
