Product Details

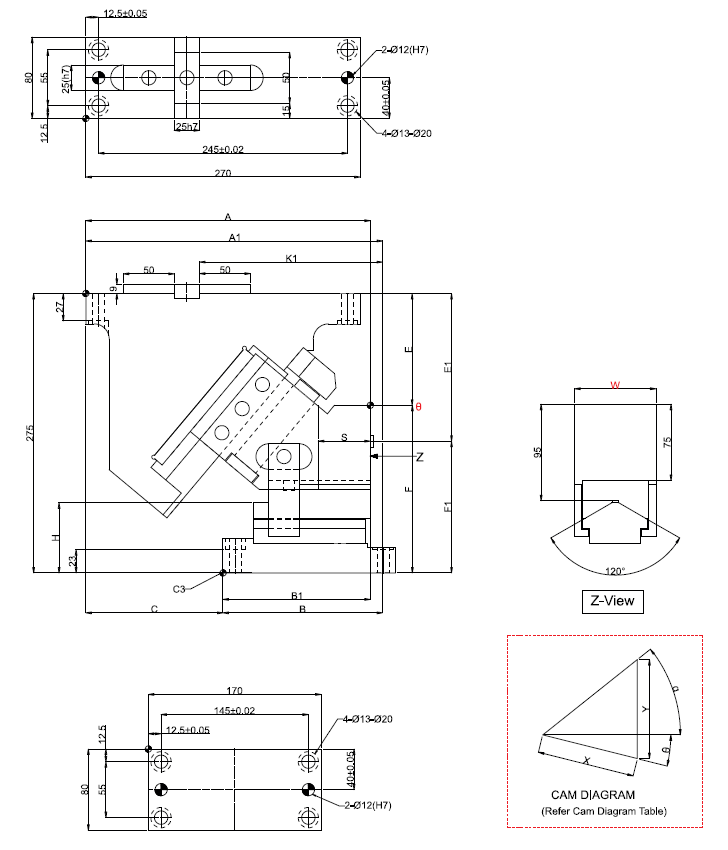

Arial Cam Unit - PCU-CS15-80-(00-60)

Technical Description

Material Type: Refer catalogue for material details

Width (W) : 80 mm

Angle (Φ) : 00 to 60

Order Type : Code-Size (W)-Φ-OC
Example : PCU-CS15-80-00-NF

*For OC option Please refer to our catalogue

Product of: Pawan

Add to cart	CAD File	Item Code	W Mm	Angle	a mm	a1 mm	b mm	b1 mm	c mm	E mm	e1 mm	F mm	f1 mm	h mm	l mm	K1 Mm	Y Mm	S mm	SL Kg	SL1 Kg	SLM Kg	WF Kg	wt Kg
		PCU-CS15-80-00	80	0	280	292	145	157	135	110	155	165	120	69	50	180	45	32.1	74 (7.5)	1044 (106.5)	1224 (124.8)(67.0)	166.7 (17.0)	27.9
		PCU-CS15-80-05	80	5	281.31	289.5	156.31	164.5	125	115.93	160	159.07	115	73.5	50	160.5	43.19	35.5	74 (7.5)	1063(108.4)	1224 (124.8)(67.0)	166.7 (17.0)	27.5
		PCU-CS15-80-10	80	10	277.5	281.37	167.5	171.37	110	117.84	165	157.16	110	82.6	50	153	45.77	38.9	74 (7.5)	1076(109.8)	1224 (124.8)(67.0)	166.7 (17.0)	26.9
		PCU-CS15-80-15	80	15	280.48	279.7	175.48	174.7	105	120.72	170	154.28	105	91.3	50	144	47.8	42.4	74 (7.5)	1088(110.9)	1224 (124.8)(67.0)	166.7 (17.0)	26.5
		PCU-CS15-80-20	80	20	276.16	270.57	181.16	175.57	95	124.55	175	150.45	100	99.6	50	136.5	49.32	46.1	74 (7.5)	1099(112.1)	1224 (124.8)(67.0)	166.7 (17.0)	26
		PCU-CS15-80-25	80	25	271.47	261.07	191.47	181.07	80	129.29	180	145.71	95	107.3	50	127.5	50.35	50	74 (7.5)	1109(113.0)	1224 (124.8)(67.0)	166.7 (17.0)	25.9
		PCU-CS15-80-30	80	30	264.33	249.27	199.33	184.27	65	134.92	185	140.08	90	114.5	50	120	50.9	54.3	74 (7.5)	1118 (114.0)	1224 (124.8)(67.0)	166.7 (17.0)	25.3
		PCU-CS15-80-35	80	35	260.66	241.26	205.66	186.26	55	141.38	190	133.62	85	120.9	50	112.5	50.95	59	74 (7.5)	1127 (114.9)	1224 (124.8)(67.0)	166.7 (17.0)	25
		PCU-CS15-80-40	80	40	252.32	228.34	217.32	193.34	35	147.76	195	127.24	80	126.8	50	105	51.6	64.3	74 (7.5)	1134 (115.6)	1224 (124.8)(67.0)	166.7 (17.0)	24.7
		PCU-CS15-80-45	80	45	247.46	221.04	217.46	191.04	30	156.61	200	118.39	75	131.8	50	99	49.36	70.4	74 (7.5)	1143 (116.6)	1224 (124.8)(67.0)	166.7 (17.0)	24.7
		PCU-CS15-80-50	80	50	237.8	209.12	222.8	194.12	15	165.27	205	109.73	70	136.1	50	93	47.51	77.8	74 (7.5)	1150 (117.3)	1224 (124.8)(67.0)	166.7 (17.0)	24.9
		PCU-CS15-80-55	80	55	231.36	201.62	231.36	201.62	0	174.53	210	100.47	65	139.6	45	72	44.7	78.5	74 (7.5)	1042 (106.2)	1109 (113.0)	166.7 (17.0)	25.8
		PCU-CS15-80-60	80	60	233.95	207.53	233.95	207.53	0	185.89	215	89.11	60	140.7	40	79	37.43	80	74 (7.5)	936 (95.5)	994 (101.3)	166.7 (17.0)	26.2
