Product Details

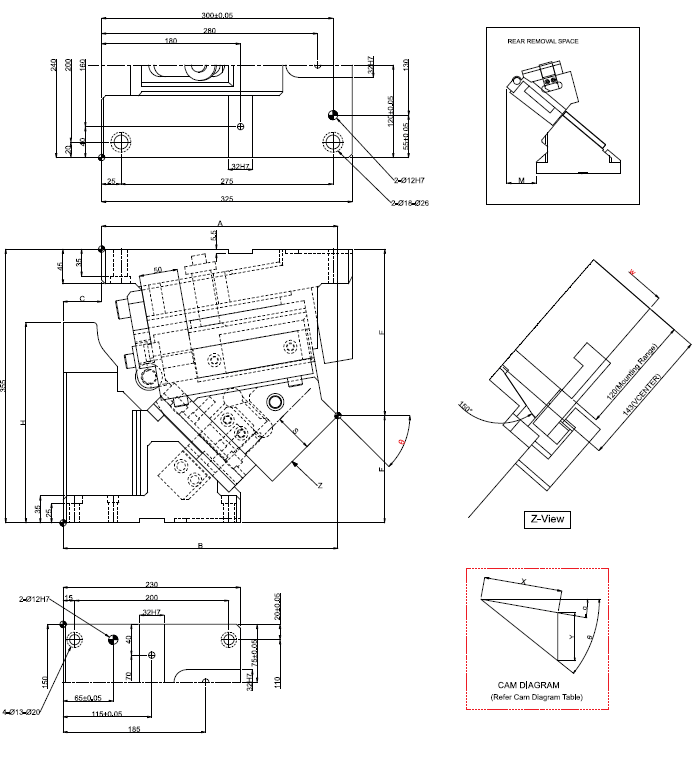

Arial Cam Unit - PCU-CS14-150-(35-65)

Technical Description

Material Type: Refer catalogue for material details

Width (W) : 150 mm

Angle (Φ) : 35 to 65

Order Type : Code-Size (W)-Φ-OC
Example : PCU-CS14-150-35-N13

*For OC option Please refer to our catalogue

Product of: Pawan

Add to cart	CAD File	Item Code	W Mm	Angle	a mm	b mm	c mm	E mm	F mm	h mm	M mm	S mm	SL Kg	SL1 Kg	SLM Kg	WF Kg	WFM Kg	wt Kg
		PCU-CS14-150-35	150	35	322.08	337.08	15	192.95	162.05	220	159	57.3	862(87.9)	6480(660.8)	7022(716.1)	147.1(15.0)	294.2(30.0)	113.1
		PCU-CS14-150-40	150	40	312.26	347.26	35	204.06	150.94	240	170	63	862(87.9)	6530(665.8)	7022(716.1)	147.1(15.0)	294.2(30.0)	114.7
		PCU-CS14-150-45	150	45	306.42	356.42	50	216.01	138.99	260	174	69.6	862(87.9)	6579(670.9)	7022(716.1)	147.1(15.0)	294.2(30.0)	115.8
		PCU-CS14-150-50	150	50	294.51	364.51	70	228.71	126.29	280	181	77.4	862(87.9)	6628(675.9)	7022(716.1)	147.1(15.0)	294.2(30.0)	117.5
		PCU-CS14-150-55	150	55	281.46	371.46	90	242.07	112.93	295	185	87.1	862(87.9)	6665(679.7)	7022(716.1)	147.1(15.0)	294.2(30.0)	117.5
		PCU-CS14-150-60	150	60	272.22	377.22	105	255.98	99.02	315	184	99.6	862(87.9)	6714(684.7)	7022(716.1)	147.1(15.0)	294.2(30.0)	122
		PCU-CS14-150-65	150	65	261.75	381.75	120	270.34	84.66	340	182	116.5	862(87.9)	6764(689.7)	7022(716.1)	147.1(15.0)	294.2(30.0)	126
