Product Details

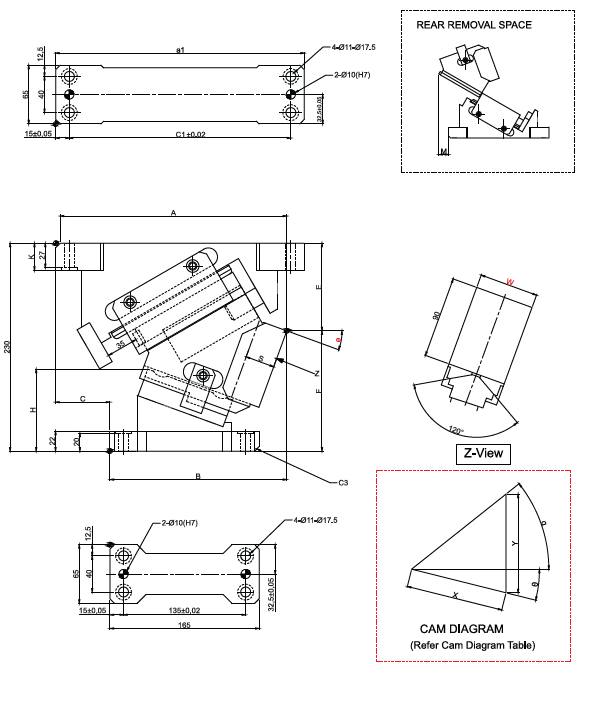

Arial Cam Units - PCU-CS7-65-(00-55)

Technical Description

Material Type: Refer catalogue for material details

Width (W) : 65 mm

Angle (Φ) : 00 to 55



Order Type : Code-Size (W)-Φ
Example : PCU-CS7-65-10

Availability - 20 Days
(*Note - This is tentative schedule, may vary as per material availability)

Product of: Pawan
Pawan Logo
Add to cart CAD File Item Code W MmAnglea mmb mmc mmE mmF mmh mmk mma1 mmC1 mmM mmS mmSL KgSL1 KgSLM KgWF KgWFM Kgwt Kg
PCU-CS7-65-006502551609579.2150.858.530275245022.50(0.0)4654(474.6)5989(610.7)68.6(7.0)137.3(14.0)18.4
PCU-CS7-65-05655265.68170.689582.29147.7167.130275245022.60(0.0)4671(476.3)5989(610.7)68.6(7.0)137.3(14.0)18.6
PCU-CS7-65-106510256.04181.047586.29143.7175.4302752451927.20(0.0)4893(499.0)5989(610.7)68.6(7.0)137.3(14.0)17.4
PCU-CS7-65-156515266.02191.027591.18138.8283.3302752451927.80(0.0)4911(500.7)5989(610.7)68.6(7.0)137.3(14.0)17.5
PCU-CS7-65-206520255.53195.536096.93133.0790.8302752453632.30(0.0)5065(516.4)5989(610.7)68.6(7.0)137.3(14.0)16.6
PCU-CS7-65-256525264.51204.5160103.48126.5297.8302752453633.40(0.0)5099(519.9)5989(610.7)68.6(7.0)137.3(14.0)16.8
PCU-CS7-65-306530252.88212.8840110.79119.21104.33029026048380(0.0)5201(530.4)5989(610.7)68.6(7.0)137.3(14.0)16.9
PCU-CS7-65-356535260.58220.5840118.8111.2110.2302902604740.20(0.0)5236(533.9)5989(610.7)68.6(7.0)137.3(14.0)17
PCU-CS7-65-406540242.56222.5620122.45107.55120.43029026066450(0.0)5321(542.6)5989(610.7)68.6(7.0)137.3(14.0)16.4
PCU-CS7-65-456545248.75228.7520131.6798.33125302902605948.70(0.0)5373(547.8)5989(610.7)68.6(7.0)137.3(14.0)16.6
PCU-CS7-65-506550236.28236.280125.98104.02148.1392902607154.50(0.0)5441(554.8)5989(610.7)68.6(7.0)137.3(14.0)15.9
PCU-CS7-65-556555240.78240.780136.1493.86153.13929026063610(0.0)5492(560.1)5989(610.7)68.6(7.0)137.3(14.0)16.1
