Product Details

Heavy Load Spring - Series P2

Technical Description

Colour - Pista Green
Material - Spring Steel
Compression-
Long Life -20% of length
Medium Life - 22% of length
Average Life - 25% of length
Diameter Range -20mm to 38mm
Length Range -25mm to 200mm
Order Type - Code
Example - P2-35X50
Availability - Ready Stock
(*Note - This is tentative schedule, may vary as per material availability)

Product of: Pawan
Pawan Logo

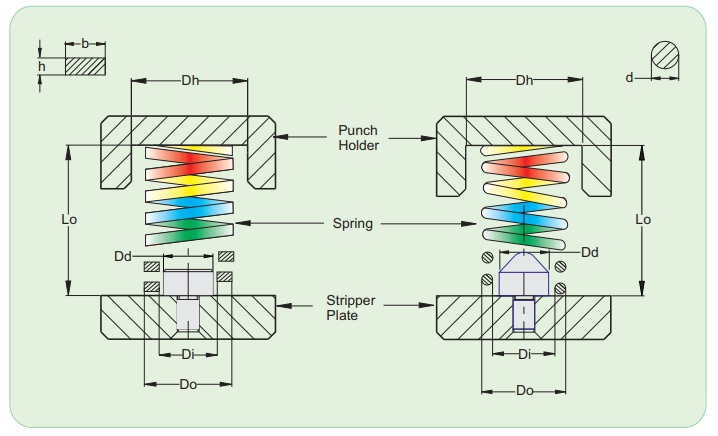

Add to cart CAD File Item Code Dh In MmLo In MmC In Kg Per MmDd In MmMaXimum Life Lm (mm)MaXimum Life Pm (Kg) Average Life La (mm)Average Life Pa (Kg)
P2-20X25202531.41051576.3196.3
P2-20X30203027.81061677.5208.7
P2-20X352035241071688.8210
P2-20X40204018.7108149.610187
P2-20X50205014.91010149.112.5186.4
P2-20X55205513.51011148.513.8185.6
P2-20X60206012.31012147.615184.5
P2-20X65206510.81013140.116.3175.2
P2-20X7020709.61014134.417.5168
P2-20X7520759.11015136.518.8170.6
P2-20X8020808.5101613620170
P2-20X9020907.5101813522.5168.8
P2-20X100201006.71020134.625168.3
P2-20X110201106.11022134.227.5167.8
P2-20X125201255.4102513531.3168.8
P2-20X140201404.91028137.235171.5
P2-20X150201504.4103013237.5165
P2-25X25252561.112.55305.36.3381.6
P2-25X30253042.512.56254.87.5318.5
P2-25X35253535.612.57249.38.8311.6
P2-25X40254028.812.58230.210287.7
P2-25X50255021.112.51021112.5263.8
P2-25X55255518.212.511200.213.8250.3
P2-25X60256016.612.512199.415249.3
P2-25X65256516.112.513209.216.3261.5
P2-25X70257013.912.51419417.5242.6
P2-25X75257513.912.515209.118.8261.4
P2-25X8025801212.51619220240
P2-25X90259010.612.518190.822.5238.5
P2-25X100251009.512.520190.425238
P2-25X110251108.812.522193.827.5242.3
P2-25X125251257.612.525190.831.3238.4
P2-25X140251406.712.528188.235235.2
P2-25X150251506.312.530189.937.5237.4
P2-25X175251755.312.535186.643.8233.2
P2-25X200252004.812.54019050237.5
P2-32X40324055.4158443.210554
P2-32X50325038.71510387.212.5484
P2-32X55325535.81511393.413.8491.7
P2-32X60326032.5151239015487.5
P2-32X65326530.11513391.816.3489.8
P2-32X703270271514377.617.5472
P2-32X75327524.91515373.518.8466.9
P2-32X80328022.51516359.820449.8
P2-32X90329019.91518358.622.5448.2
P2-32X1003210018.1152036225452.5
P2-32X1103211015.71522345.827.5432.3
P2-32X1253212513.71525342.531.3428.1
P2-32X1403214012.21528342.735428.4
P2-32X1503215011.31530337.537.5421.9
P2-32X175321759.91535345.143.8431.4
P2-32X200322008.7154034850435
P2-35X50355038181038012.5475
P2-35X55355535181138513.8481.3
P2-35X60356030.61812367.215459
P2-35X65356526.51813344.516.3430.6
P2-35X70357025.61814358.417.5448
P2-35X75357523181534518.8431.3
P2-35X80358021.41816342.420428
P2-35X90359018181832422.5405
P2-35X1003510016.1182032225402.5
P2-35X1103511021.61822475.227.5594
P2-35X1253512518.2182545531.3568.8
P2-35X1403514016.61828464.835581
P2-35X1503515015.2183045637.5570
P2-35X1753517512.8183544843.8560
P2-35X2003520012184048050600
P2-38X50385051.5181051512.5643.8
P2-38X55385547.61811523.613.8654.5
P2-38X60386042181250415630
P2-38X65386539.21813509.616.3637
P2-38X70387034181447617.5595
P2-38X75387533.6181550418.8630
P2-38X80388032.71816523.220654
P2-38X90389026.41818475.222.5594
P2-38X1003810023182046025575
P2-38X1103811021.61822475.227.5594
P2-38X1253812518.2182545531.3568.8
P2-38X1403814016.61828464.835581
P2-38X1503815015.2183045637.5570
P2-38X1753817512.8183544843.8560
P2-38X2003820012184048050600
