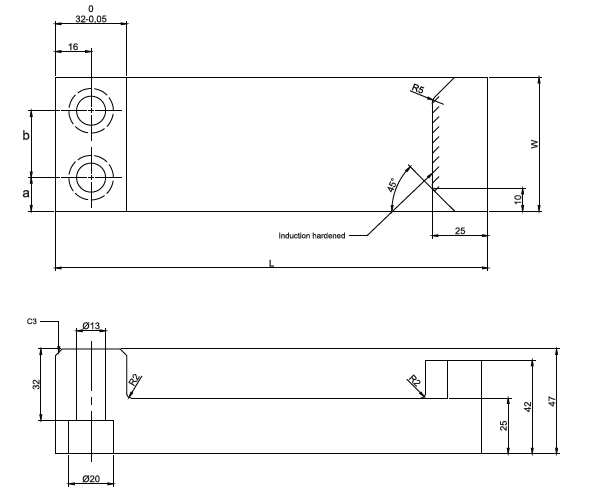

Product Details

Material : EN8

Hardness : 55 HRC (Induction Hardened)

Width (W) : 60 & 80 mm

Length (L) : 171 & 191 mm

Order Type : PCU-CA27-W-L

Example : PCU-CA27-60-191

Item Code	W (mm)	L (mm)	A (mm)	B (mm)
PCU-CA27-60-171	60	171	15	30
PCU-CA27-60-191	60	191	15	30
PCU-CA27-80-171	80	171	20	40
PCU-CA27-80-191	80	191	20	40
