Product Details

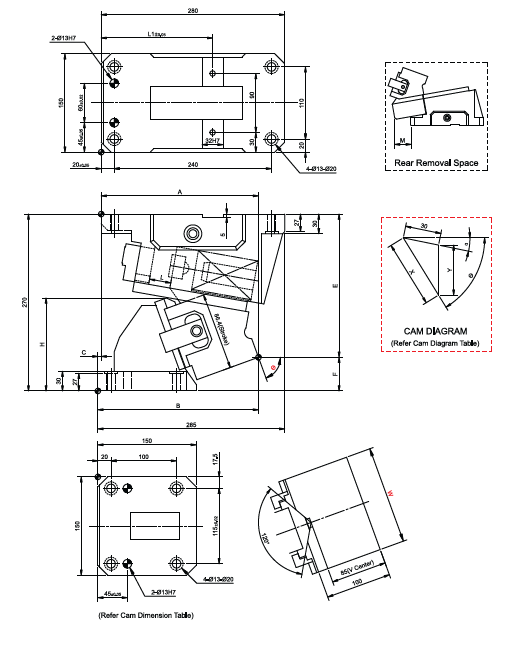

Technical Description

Material Type: Refer catalogue for material details

Width (W) : 150 mm

Angle (Φ) : 60 to 70

Order Type : Code-Size (W)-Φ-OC
Example : PCU-CS2-150-70-K

*For OC option Please refer to our catalogue

Item Code	W Mm		a mm	b mm	c mm	E mm	F mm	h mm	l mm	L1 mm	M mm	S mm	SL Kg	SL1 Kg	SLM Kg	WF Kg	WFM Kg	wt Kg
PCU-CS2-150-60	150	60	246.6	246.6	0	193.92	76.08	138.2	50	170	100	98.5	636(64.9)	4412(449.9)	4611(470.2)	88.3(9.0)	132.4(13.5)	41.5
PCU-CS2-150-65	150	65	241.35	241.35	0	206.49	63.51	138.6	40	170	104	93.2	1431(145.9)	4444 (453.2)	4611(470.2)	88.3(9.0)	132.4(13.5)	42.2
PCU-CS2-150-70	150	70	240.01	245.01	5	218.56	51.44	141.9	30	170	102	86.4	2226 (227.0)	4476 (456.4)	4611(470.2)	88.3(9.0)	132.4(13.5)	43.5
