Product Details

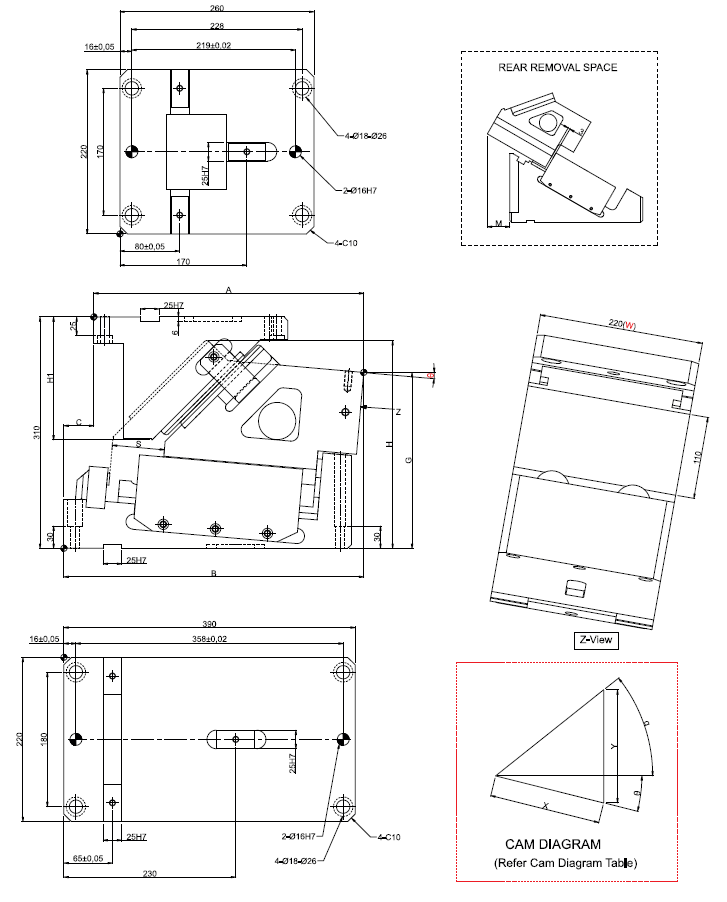

Technical Description

Material Type: Refer catalogue for material details

Width (W) : 220 mm

Angle (Φ) : 00 to 20

Order Type : Code-Size (W)-Φ-OC
Example : PCU-CS11-220-10-K

*For OC option Please refer to our catalogue

Item Code	W Mm	Angle	a mm	b mm	c mm	F mm	G mm	h mm	SLM Kg	WF Kg	WFM Kg	wt Kg
PCU-CS11-220-00	220	0	355	390	35	177.6	247	274.5	13400(1367.3)	245.2(25.0)	166.7 (17.0)	139
PCU-CS11-220-05	220	5	356.59	406.59	50	165.9	234.56	280.7	13400(1367.3)	245.2(25.0)	166.7 (17.0)	139
PCU-CS11-220-10	220	10	347.76	422.76	75	161.7	223.13	287.8	13400(1367.3)	245.2(25.0)	166.7 (17.0)	139
PCU-CS11-220-15	220	15	348.41	433.41	85	138.6	211.75	294.1	13400(1367.3)	245.2(25.0)	166.7 (17.0)	139
PCU-CS11-220-20	220	20	346.46	443.46	97	124.3	200.75	300	13400(1367.3)	245.2(25.0)	166.7 (17.0)	139
