Product Details

Technical Description

Material Type: Refer catalogue for material details

Width (W) : 200 mm

Angle (Φ) : 50 to 60

Order Type : Code-Size (W)-Φ-OC
Example : PCU-CS15-200-50-NF

*For OC option Please refer to our catalogue

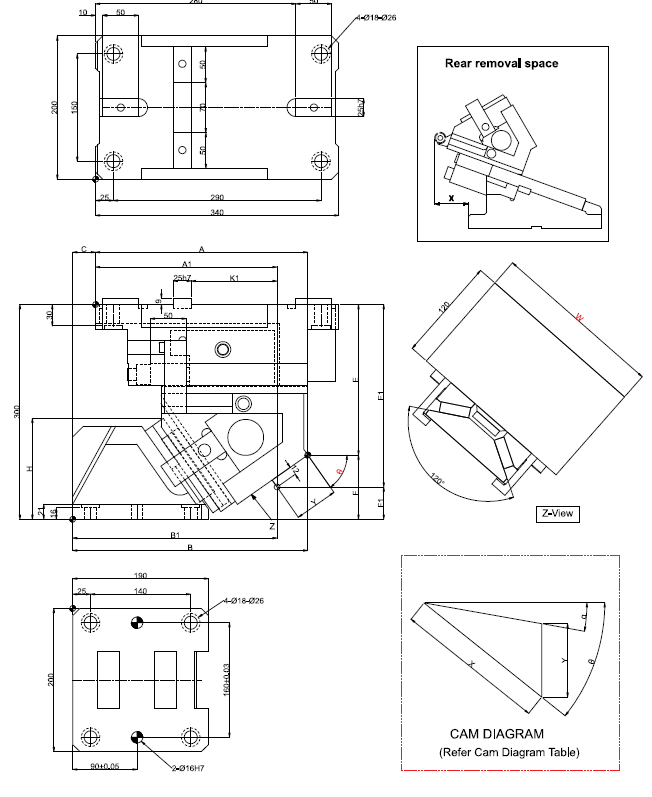

Item Code	W Mm	Angle	a mm	a1 mm	b mm	b1 mm	c mm	E mm	e1 mm	F mm	f1 mm	h mm	K1 Mm	Y Mm	M mm	S mm	SL Kg	SL1 Kg	SLM Kg	WF Kg	wt Kg
PCU-CS15-200-50	200	50	307.27	267.1	322.27	282.1	15	195.63	245	104.37	55	137	105.5	62.51	91	77.8	749 (76.4)	4254 (433.8)	4494 (458.3)	353.0 (36.0)	78.2
PCU-CS15-200-55	200	55	296.59	253.67	328.59	285.67	32	210.3	255	89.7	45	140.3	120	60.8	99	87.2	749 (76.4)	4277 (436.1)	4494 (458.3)	353.0 (36.0)	80.5
PCU-CS15-200-60	200	60	288.56	238.54	333.56	283.54	45	222.26	265	77.74	35	145.7	113	64.69	103	100	749 (76.4)	4307 (439.2)	4494 (458.3)	353.0 (36.0)	82.4
