Pawan-ec - Product Details

Item Code	L In Mm	d (mm)	D In Mm	H In Mm	T In Mm
PBOE - 12X10	10	12	8	20	2
PBOE - 12X15	15	12	8	20	2
PBOE - 14X10	10	14	10	22	2
PBOE - 14X12	12	14	10	22	2
PBOE - 14X14	15	14	10	22	2
PBOE - 14X15	17	14	10	22	2
PBOE - 14X17	20	14	10	22	2
PBOE - 18X15	15	18	18	25	3
PBOE - 18X20	20	18	18	25	3
PBOE - 18X25	25	18	18	25	3
PBOE - 18X30	30	18	18	25	3
PBOE - 19X15	15	19	13	26	3
PBOE - 19X20	20	19	13	26	3
PBOE - 20X15	15	20	14	27	3
PBOE - 20X20	20	20	14	27	3
PBOE - 20X25	25	20	14	27	3
PBOE - 21X15	15	21	15	28	3
PBOE - 21X20	20	21	15	28	3
PBOE - 21X25	25	21	15	28	3
PBOE - 21X30	30	21	15	28	3
PBOE - 22X15	15	22	16	29	3
PBOE - 22X18	18	22	16	29	3
PBOE - 22X20	20	22	16	29	3
PBOE - 22X23	23	22	16	29	3
PBOE - 22X25	25	22	16	29	3
PBOE - 22X30	30	22	16	29	3
PBOE - 22X35	35	22	16	29	3
PBOE - 22X40	40	22	16	29	3
PBOE - 24X20	20	24	18	32	3
PBOE - 24X30	30	24	18	32	3
PBOE - 30X15	15	30	20	40	5
PBOE - 30X20	20	30	20	40	5
PBOE - 30X25	25	30	20	40	5
PBOE - 30X30	30	30	20	40	5
PBOE - 30X35	35	30	20	40	5
PBOE - 30X40	40	30	20	40	5
PBOE - 35X15	15	35	25	45	5
PBOE - 35X20	20	35	25	45	5
PBOE - 35X25	25	35	25	45	5
PBOE - 35X30	30	35	25	45	5
PBOE - 35X35	35	35	25	45	5
PBOE - 35X40	40	35	25	45	5
PBOE - 35X50	50	35	25	45	5
PBOE - 40X20	20	40	30	50	5
PBOE - 40X25	25	40	30	50	5
PBOE - 40X30	30	40	30	50	5
PBOE - 40X35	35	40	30	50	5
PBOE - 40X40	40	40	30	50	5
PBOE - 40X50	50	40	30	50	5
PBOE - 45X20	20	45	35	60	5
PBOE - 45X25	25	45	35	60	5
PBOE - 45X30	30	45	35	60	5
PBOE - 45X35	35	45	35	60	5
PBOE - 45X40	40	45	35	60	5
PBOE - 45X50	50	45	35	60	5
PBOE - 50X20	20	50	40	65	5
PBOE - 50X25	25	50	40	65	5
PBOE - 50X30	30	50	40	65	5
PBOE - 50X35	35	50	40	65	5
PBOE - 50X40	40	50	40	65	5
PBOE - 50X50	50	50	40	65	5
PBOE - 55X30	30	55	45	70	5
PBOE - 55X35	35	55	45	70	5
PBOE - 55X40	40	55	45	70	5
PBOE - 55X50	50	55	45	70	5
PBOE - 55X60	60	55	45	70	5
PBOE - 60X30	30	60	50	75	5
PBOE - 60X35	35	60	50	75	5
PBOE - 60X40	40	60	50	75	5
PBOE - 60X50	50	60	50	75	5
PBOE - 60X60	60	60	50	75	5
PBOE - 65X40	40	65	55	80	5
PBOE - 65X60	60	65	55	80	5
PBOE - 75X40	40	75	60	90	7.5
PBOE - 75X50	50	75	60	90	7.5
PBOE - 75X80	80	75	60	90	7.5
PBOE - 85X50	50	85	70	105	7.5
PBOE - 85X80	80	85	70	105	7.5
PBOE - 100X60	60	100	80	120	10
PBOE - 100X80	80	100	80	120	10
PBOE - 100X100	100	100	80	120	10
PBOE - 110X60	60	110	90	130	10
PBOE - 110X80	80	110	90	130	10
PBOE - 120X80	80	120	100	150	10
PBOE - 120X100	100	120	100	150	10
PBOE - 140X80	80	140	120	170	10
PBOE - 140X100	100	140	120	170	10

Making Things Possible

Product Details

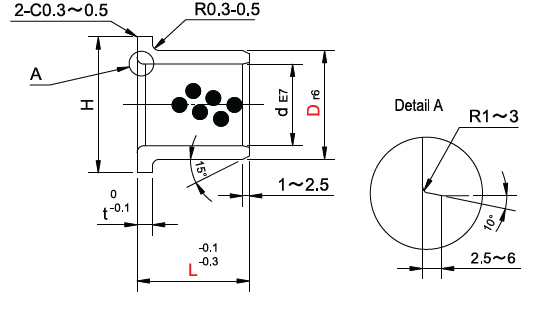

Oilless Bush Flange Type- PBOE

Product of: Pawan
