Product Details

Material : Copper alloy Special Solid lubricant (embedded)

Width (W) : 40 & 50 mm

Length (L) : 100-250 mm

Order Type : PCU-CA34-W-L-T

Example : PCU-CA34-50-200-55

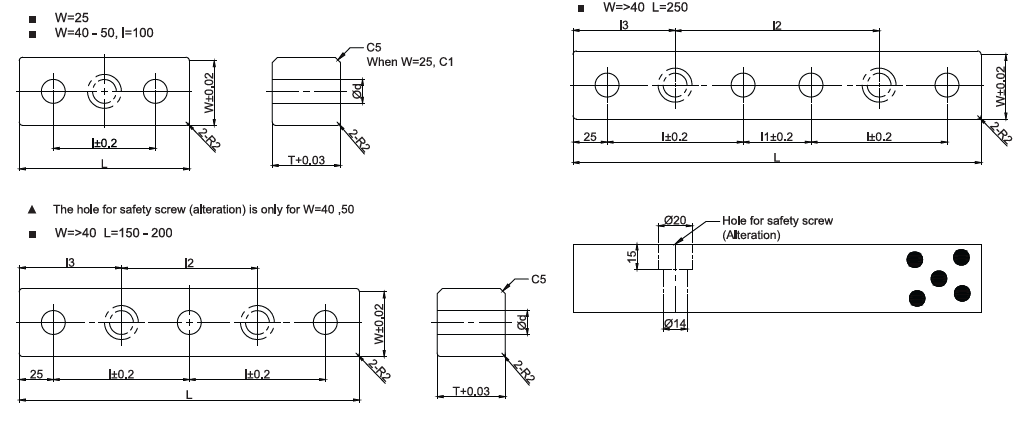

Item Code	W (mm)	L (mm)	T (mm)		L (mm)	L1 (mm)	L2 (mm)	L3 (mm)
PCU-CA34-40-100-30	40	100	30	14	50	-	-	-
PCU-CA34-40-150-30	40	150	30	14	50	-	50	50
PCU-CA34-40-200-30	40	200	30	14	75	-	75	62.5
PCU-CA34-40-250-30	40	250	30	14	75	50	125	62.5
PCU-CA34-40-100-40	40	100	40	14	50	-	-	-
PCU-CA34-40-150-40	40	150	40	14	50	-	50	50
PCU-CA34-40-200-40	40	200	40	14	75	-	75	62.5
PCU-CA34-40-250-40	40	250	40	14	75	50	125	62.5
PCU-CA34-50-100-45	50	100	45	20	50	-	-	-
PCU-CA34-50-150-45	50	150	45	20	50	-	50	50
PCU-CA34-50-200-45	50	200	45	20	75	-	75	62.5
PCU-CA34-50-250-45	50	250	45	20	75	50	125	62.5
PCU-CA34-50-100-55	50	100	55	20	50	-	-	-
PCU-CA34-50-150-55	50	150	55	20	50	-	50	50
PCU-CA34-50-200-55	50	200	55	20	75	-	75	62.5
PCU-CA34-50-250-55	50	250	55	20	75	50	125	62.5
PCU-CA34-50-150-60	50	150	60	20	50	-	50	50
PCU-CA34-50-200-60	50	200	60	20	75	-	75	62.5
PCU-CA34-50-250-60	50	250	60	20	75	50	125	62.5
PCU-CA34-50-150-70	50	150	70	20	50	-	50	50
PCU-CA34-50-200-70	50	200	70	20	75	-	75	62.5
PCU-CA34-50-250-70	50	250	70	20	75	50	125	62.5
