Product Details

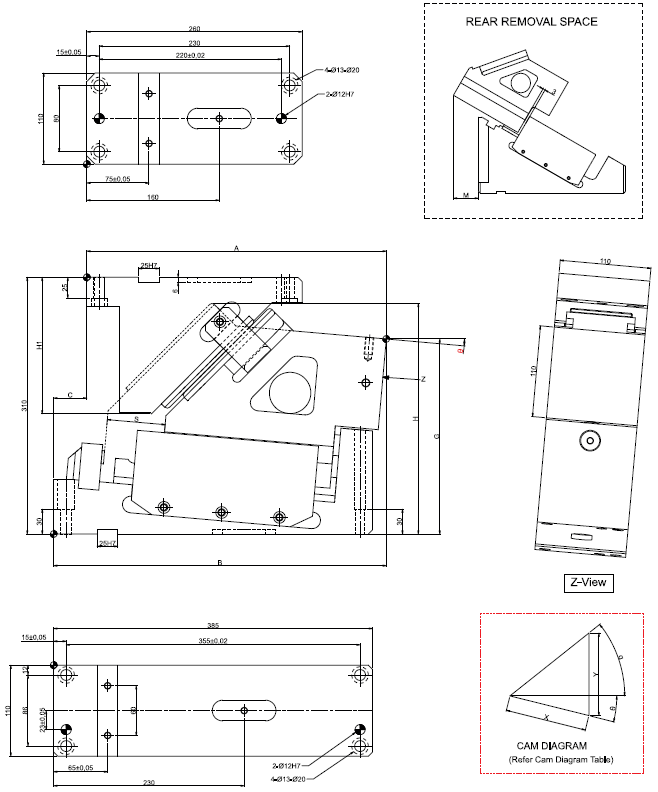

Technical Description

Material Type: Refer catalogue for material details

Width (W) : 110 mm

Angle (Φ) : 00 to 20

Order Type : Code-Size (W)-Φ-OC
Example : PCU-CS11-110-10-K

*For OC option Please refer to our catalogue

Item Code	W Mm	Angle	a mm	b mm	c mm	F mm	G mm	h mm	SLM Kg	WF Kg	WFM Kg	wt Kg
PCU-CS11-110-00	85	0	360	385	15	158.4	235	258.4	6700(683.7)	117.7 (12.0)	117.7 (12.0)	70.4
PCU-CS11-110-05	85	5	361.59	401.6	30	146.6	225.4	265.9	6700(683.7)	117.7 (12.0)	117.7 (12.0)	70.3
PCU-CS11-110-10	85	10	352.76	363.2	45	134.9	215.01	272.4	6700(683.7)	117.7 (12.0)	117.7 (12.0)	71.1
PCU-CS11-110-15	85	15	353.41	371.6	55	122.6	204.86	278.7	6700(683.7)	117.7 (12.0)	117.7 (12.0)	73
PCU-CS11-110-20	85	20	348.46	379.4	70	109.6	195.01	284.7	6700(683.7)	117.7 (12.0)	117.7 (12.0)	74.9
