Product Details

Technical Description

Material Type: Refer catalogue for material details

Width (W) : 80 mm

Angle (Φ) : 55 - 65

Order Type : Code-Size (W)-Φ-OC
Example : PCU-CS14-80-60-NK

*For OC option Please refer to our catalogue

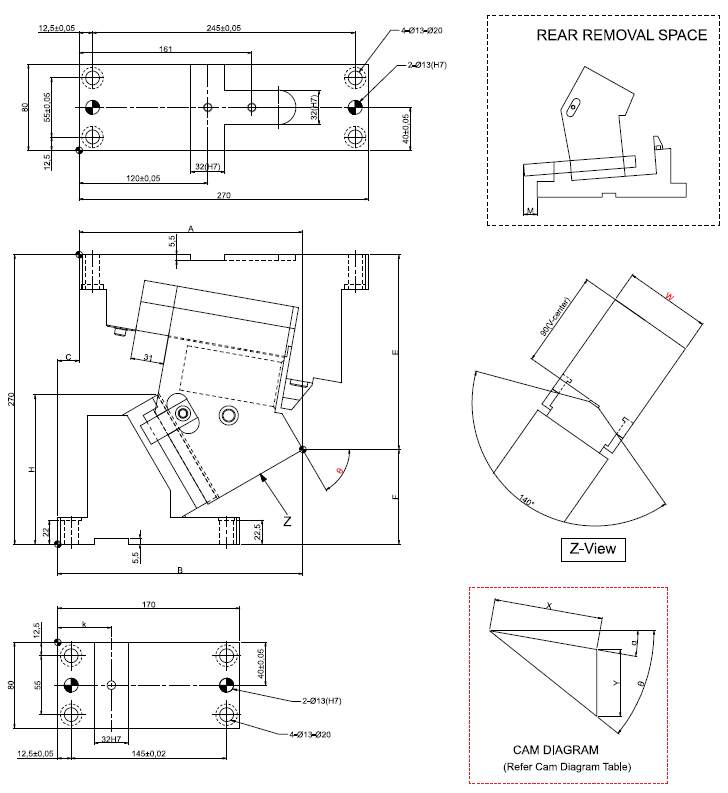

Item Code	W Mm	Angle	a mm	b mm	c mm	E mm	F mm	h mm	M mm	S mm	SL Kg	SL1 Kg	SLM Kg	WF Kg	WFM Kg	wt Kg
PCU-CS14-80-55	80	55	229.64	229.64	0	172.07	97.93	136.9	5	53.8	566(57.7)	1788(182.3)	1914(195.2)	49.0(5.0)	98.1(10.0)	30
PCU-CS14-80-60	80	60	208.58	228.58	20	181.73	88.27	139.3	23	61.1	566(57.7)	1805(184.1)	1914(195.2)	49.0(5.0)	98.1(10.0)	31
PCU-CS14-80-65	80	65	203.67	233.67	30	191.87	78.13	140.8	23	70.9	566(57.7)	1818(185.4)	1914(195.2)	49.0(5.0)	98.1(10.0)	32
