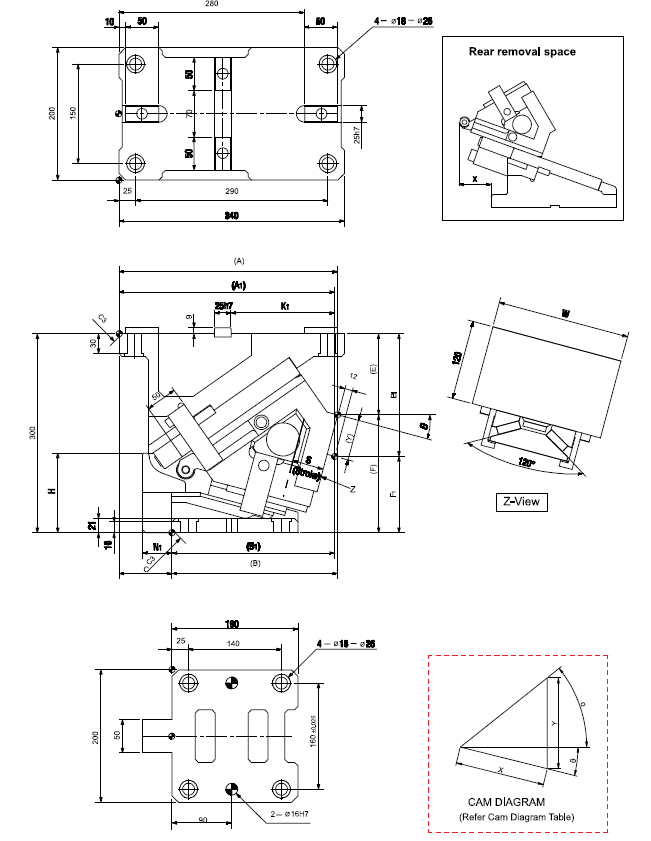

Item Code	W Mm	Angle	a mm	a1 mm	b mm	b1 mm	c mm	E mm	e1 mm	F mm	f1 mm	h mm	K1 Mm	N1 Mm	Y Mm	M mm	S mm	SL Kg	SL1 Kg	SLM Kg	WF Kg	wt Kg
PCU-CS15-200-00	200	0	335.84	347.84	207.84	219.84	128	96.98	170	203.02	130	80	180.5	55	73.02	21	32.1	749 (76.4)	3910 (398.7)	4494 (458.3)	353.0 (36.0)	90.3
PCU-CS15-200-05	200	5	335.25	340.82	222.25	227.82	113	100.91	175	199.09	125	98	173	55	73.32	37	35.5	749 (76.4)	3970 (404.8)	4494 (458.3)	353.0 (36.0)	88
PCU-CS15-200-10	200	10	337.27	337.3	236.27	236.3	101	111.09	180	188.91	120	109	165.5	50	67.86	48	38.9	749 (76.4)	4015 (409.4)	4494 (458.3)	353.0 (36.0)	87.5
PCU-CS15-200-15	200	15	329.78	325.45	249.78	245.45	80	122.46	185	177.54	115	120	156.5	45	61.53	66	42.4	749 (76.4)	4052 (413.2)	4494 (458.3)	353.0 (36.0)	87
PCU-CS15-200-20	200	20	332.68	323.61	262.68	253.61	70	129.99	190	170.01	110	137	149	42	59.49	71	46.1	749 (76.4)	4090 (417.0)	4494 (458.3)	353.0 (36.0)	85.8
PCU-CS15-200-25	200	25	332.88	319.83	274.88	261.83	58	138.62	195	161.38	105	154	140	37	56.61	83	50	749 (76.4)	4120 (420.1)	4494 (458.3)	353.0 (36.0)	86.2
PCU-CS15-200-30	200	30	334.28	315.39	286.28	267.39	48	148.28	205	151.72	95	125	132.5	30	58.57	90	54.3	749 (76.4)	4149 (423.1)	4494 (458.3)	353.0 (36.0)	85.6
PCU-CS15-200-35	200	35	329.8	305.16	296.8	272.16	33	158.89	215	141.11	85	135	125	25	60.1	100	59	749 (76.4)	4179 (426.2)	4494 (458.3)	353.0 (36.0)	86.2
PCU-CS15-200-40	200	40	321.35	291.18	306.35	276.18	15	170.38	225	129.62	75	155	117.5	25	61.23	111	64.3	749 (76.4)	4202 (428.5)	4494 (458.3)	353.0 (36.0)	86.6
PCU-CS15-200-45	200	45	314.86	279.49	314.86	279.49	0	182.66	235	117.34	65	155	111.5	25	62.03	116	70.4	749 (76.4)	4232 (431.5)	4494 (458.3)	353.0 (36.0)	88
