Product Details

Arial Cam Unit - PCU-CS2-65-(50-70)

Technical Description

Material Type: Refer catalogue for material details

Width (W) : 65 mm

Angle (Φ) : 50 to 70

Order Type : Code-Size (W)-Φ-OC(*)
Example : PCU-CS2-65-50-K

*For OC option Please refer to our catalogue

Product of: Pawan

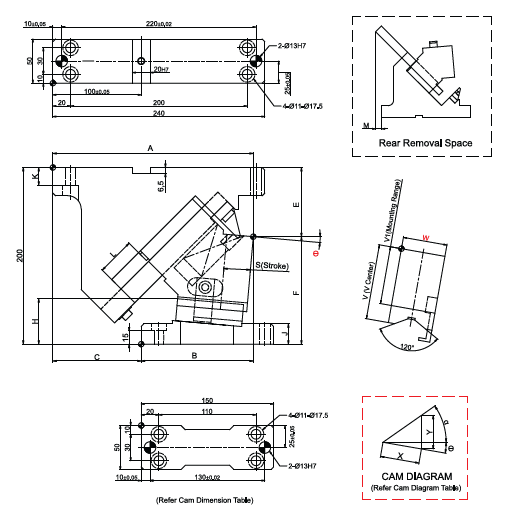

Add to cart	CAD File	Item Code	W Mm		a mm	b mm	c mm	E mm	F mm	G mm	h mm	J mm	k mm	l mm	V Mm	V1 Mm	M mm	S mm	SL Kg	SL1 Kg	SLM Kg	WF Kg	WFM Kg	wt Kg
		PCU-CS2-65-50	65	50	165.41	170.41	5	96.79	93.21	190	111.1	22	190	17.1	111.1	65	37	26.5	407(41.5)	1073(109.4)	1226(125.0)	19.6(2.0)	39.2(4.0)	8.4
		PCU-CS2-65-55	65	55	159.51	169.51	10	99.89	90.11	190	115.3	22	190	17.1	115.3	65	42	29.7	407(41.5)	1087(110.9)	1226(125.0)	19.6(2.0)	39.2(4.0)	8.4
		PCU-CS2-65-60	65	60	156.68	176.68	20	120.78	89.22	210	129.1	22	210	18.1	129.1	65	46	35	359(36.6)	1102(112.3)	1226(125.0)	19.6(2.0)	39.2(4.0)	9.3
		PCU-CS2-65-65	65	65	150.33	175.33	25	122.8	87.2	210	129.4	22	210	18.1	129.4	65	52	41.4	359(36.6)	1121(114.3)	1226(125.0)	19.6(2.0)	39.2(4.0)	9.3
		PCU-CS2-65-70	65	70	146.45	178.45	32	131.68	78.32	210	128.5	22	210	18.1	128.5	63	55	51.1	359(36.6)	1140(116.2)	1226(125.0)	19.6(2.0)	39.2(4.0)	9.5
