Product Details

Stopper (PCU-CA15)

Material : MS Urethane Spring

Hardness : Shore A90



Dia (d) : 27 & 36  mm


Order Type : PCU-CA15-d

Example : PCU-CA15-27

Product of: Pawan
Pawan Logo

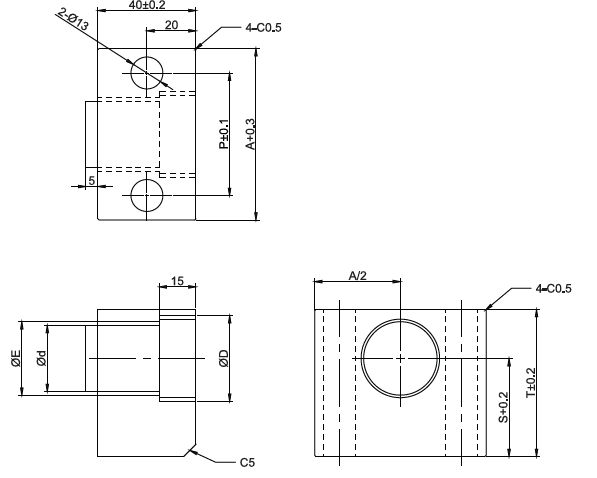

Add to cart CAD File Item Code F -max Load N (kgf)A (mm)t (mm)S (mm)P (mm)
PCU-CA15-27275100(520)706040353050
PCU-CA15-36369610(980)807045454060
