Product Details

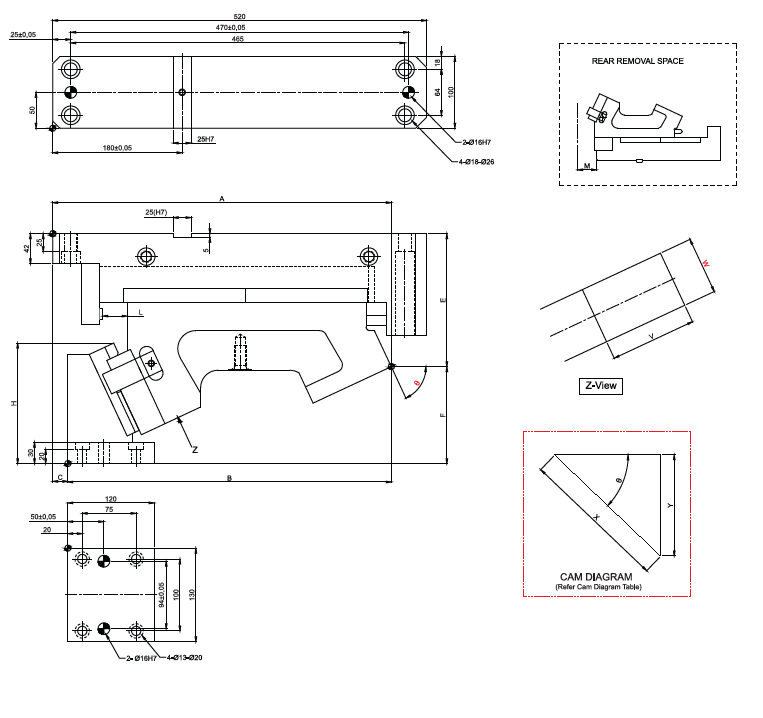

Long Arm - Arial Cam Unit - PCU-CS6.1-80-(50-80)

Technical Description

Material Type: Refer catalogue for material details

Width (W) : 80 mm

Angle (Φ) : 50 to 80

Order Type : Code-Size (W)-Φ-OC
Example : PCU-CS6.1-80-55-NF

*For OC option Please refer to our catalogue

Product of: Pawan

Add to cart	CAD File	Item Code	W Mm		a mm	b mm	c mm	E mm	F mm	h mm	l mm	V Mm	S mm	SL Kg	SLM Kg	WF Kg	WFM Kg	wt Kg
		PCU-CS6.1-80-50	80	50	408	350	58	185	135	156.8	40	120	40	440.7(45.0)	2644.3(269.8)	58.8 (6.0)	58.8 (6.0)	62.7
		PCU-CS6.1-80-55	80	55	403	350	53	185	135	160.8	40	120	40	440.7(45.0)	2644.3(269.8)	58.8 (6.0)	58.8 (6.0)	62.3
		PCU-CS6.1-80-60	80	60	398	350	48	185	135	163.8	40	120	40	440.7(45.0)	2644.3(269.8)	58.8 (6.0)	58.8 (6.0)	62.3
		PCU-CS6.1-80-65	80	65	386	350	36	185	135	167.8	34	120	34	503.7(51.4)	2644.3(269.8)	58.8 (6.0)	58.8 (6.0)	62.4
		PCU-CS6.1-80-70	80	70	375	350	25	185	135	168.8	28	120	28	587.7(60.0)	2644.6(269.9)	58.8 (6.0)	58.8 (6.0)	62.5
		PCU-CS6.1-80-75	80	75	370	350	20	185	135	170.8	21	120	21	330.6(33.7)	2644.6(269.9)	58.8 (6.0)	58.8 (6.0)	62.7
		PCU-CS6.1-80-80	80	80	365	350	15	185	135	169.9	14	120	14	587.6(60.0)	2644.4(269.8)	58.8 (6.0)	58.8 (6.0)	62.9
