Product Details

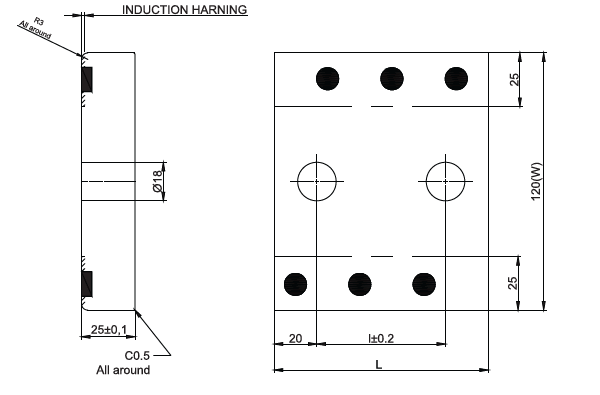

Center Upper Plate (PCU-CA23)

Material :  EN8 Special solid lubricant(embedded)

Hardness :  40HRC-(Induction Hardened)



Width (W) : 120  mm

Length (L) : 100 & 150 mm



Order Type : PCU-CA23-W-L

Example : PCU-CA23-120-100

Product of: Pawan
Pawan Logo
Add to cart CAD File Item Code L (mm)W (mm)L (mm)
PCU-CA23-120-10010012060
PCU-CA23-120-150150120110
