Product Details

Technical Description

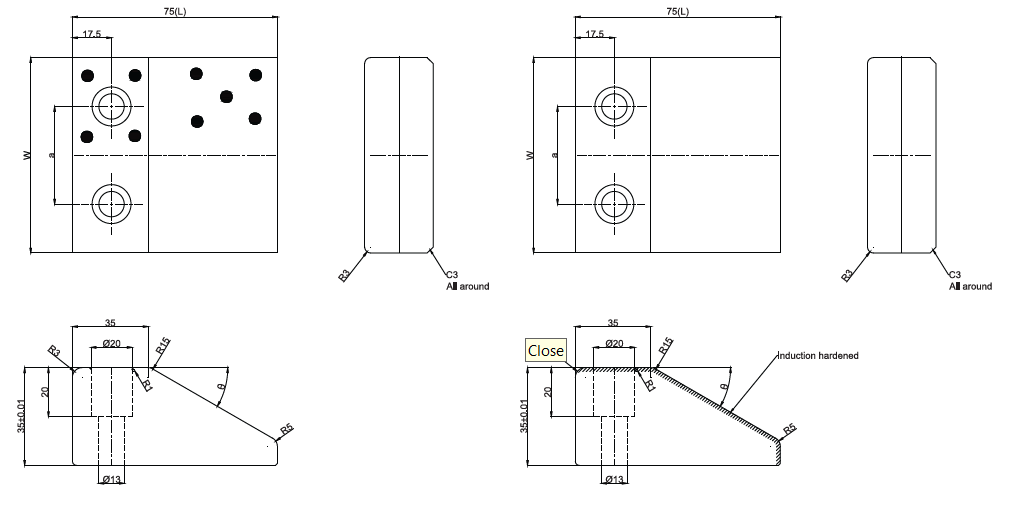

Material : 1.EN8 - For Type -S

2.Copper alloy special solid lubricant(embedded) - For Type-B

Hardness: 58-62 HRC(induction Hardened) - Type -S

Width (W) : 100 & 150 mm

Length (L) : 75 mm

Order Type : PCU-CA5-W-L-angle-Type

Example : PCU-CA5-100-75-25-S (For S-Type)

PCU-CA5-100-75-25-B(For B-Type)

Item Code	Type	W (mm)		L (mm)	A (mm)
PCU-CA5-100-75-25-B	Type-B	100	25	75	60
PCU-CA5-100-75-30-B	Type-B	100	30	75	60
PCU-CA5-150-75-25-B	Type-B	150	25	75	110
PCU-CA5-150-75-30-B	Type-B	150	30	75	110
PCU-CA5-100-75-25-S	Type-S	100	25	75	60
PCU-CA5-100-75-30-S	Type-S	100	30	75	60
PCU-CA5-150-75-25-S	Type-S	150	25	75	110
PCU-CA5-150-75-30-S	Type-S	150	30	75	110
