Product Details

Technical Description

Material Type: Refer catalogue for material details

Width (W) : 330 mm

Angle (Φ) : 00 to 20

Order Type : Code-Size (W)-Φ-OC
Example : PCU-CS11-330-10-K

*For OC option Please refer to our catalogue

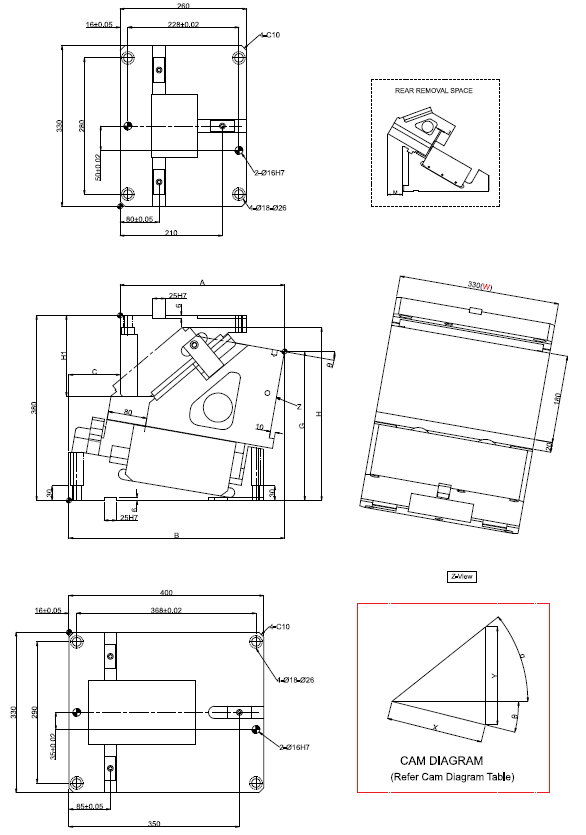

Item Code	W Mm	Angle	a mm	b mm	c mm	F mm	G mm	h mm	SLM Kg	WF Kg	WFM Kg	wt Kg
PCU-CS11-330-00	330	0	335	400	65	195.5	326	339.4	22000(2244.9)	343.2(35.0)	343.2(35.0)	251
PCU-CS11-330-05	330	5	334.2	424.2	90	185.8	316.67	347.3	22000(2244.9)	343.2(35.0)	343.2(35.0)	251
PCU-CS11-330-10	330	10	337.94	442.94	105	172.7	305.68	353.3	22000(2244.9)	343.2(35.0)	343.2(35.0)	253
PCU-CS11-330-15	330	15	336.09	461.09	125	161.5	292.08	356.4	22000(2244.9)	343.2(35.0)	343.2(35.0)	253
PCU-CS11-330-20	330	20	333.52	478.52	145	145.4	282.93	363.4	22000(2244.9)	343.2(35.0)	343.2(35.0)	262
