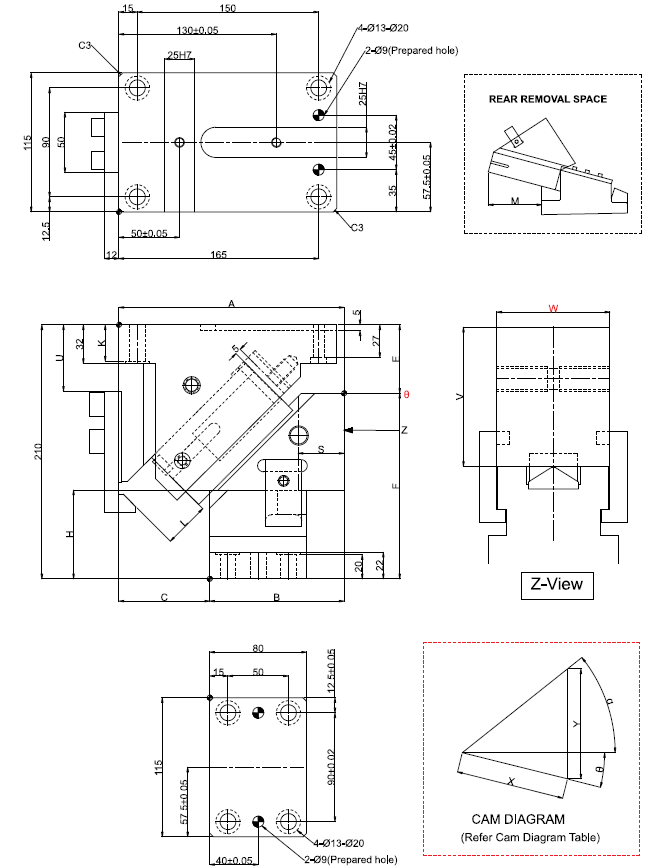

Arial Cam Unit - PCU-CS9-65-(00-70)

Technical Description

Material Type: Refer catalogue for material details

Width (W) : 65 mm

Angle (Φ) : 00 to 70

Order Type : Code-Size (W)-Φ-OC
Example : PCU-CS9-65-10-K

*For OC option Please refer to our catalogue

Product of: Pawan

Add to cart	CAD File	Item Code	W Mm	Angle	a mm	b mm	c mm	E mm	F mm	h mm	k mm	l mm	U mm	V Mm	M mm	S mm	SL Kg	SL1 Kg	SLM Kg	WF Kg	WFM Kg	wt Kg
		PCU-CS9-65-00	65	0	185.94	110.94	75	56.57	153.43	73.4	30	38	55	80	52	26.9	166 (16.9)	898 (91.6)	1067 (108.8)	19.6 (2.0)	39.2 (4.0)	14.3
		PCU-CS9-65-05	65	5	193.01	123.01	70	56.57	153.43	73.9	30	38	55	90	52	27	237 (24.2)	972 (99.1)	1138 (116.0)	19.6 (2.0)	39.2 (4.0)	15
		PCU-CS9-65-10	65	10	196.8	126.8	70	67.58	142.42	83.5	30	38	40	80	61	31.6	238 (24.2)	995 (101.5)	1139 (116.0)	19.6 (2.0)	39.2 (4.0)	13.3
		PCU-CS9-65-15	65	15	203.77	113.47	67	68.81	141.19	84.7	30	38	40	90	61	32.2	239 (24.2)	998 (101.7)	1140 (116.0)	19.6 (2.0)	39.2 (4.0)	15
		PCU-CS9-65-20	65	20	198.1	138.1	60	74.31	135.69	100.8	30	35	10	80	71	33.8	308 (31.4)	1014 (103.4)	1141 (116.0)	19.6 (2.0)	39.2 (4.0)	13.8
		PCU-CS9-65-25	65	25	204.75	149.75	55	76.73	133.27	103.8	30	35	10	90	71	35	309 (31.4)	1019 (103.9)	1142 (116.0)	19.6 (2.0)	39.2 (4.0)	15
		PCU-CS9-65-30	65	30	193.63	143.63	50	89.52	120.48	111	30	30	10	80	79	33.5	427 (43.5)	1031 (105.1)	1143 (116.0)	19.6 (2.0)	39.2 (4.0)	15.5
		PCU-CS9-65-35	65	35	199.76	154.76	45	93.06	116.94	105	30	30	10	90	79	35.4	428 (43.5)	1038 (105.9)	1144 (116.0)	19.6 (2.0)	39.2 (4.0)	15
		PCU-CS9-65-40	65	40	188.72	148.72	40	99.62	110.38	120	25	33	15	80	79	42.9	356 (36.3)	1048 (106.8)	1145 (116.0)	19.6 (2.0)	39.2 (4.0)	15.8
		PCU-CS9-65-45	65	45	194.13	160.13	34	104.16	105.84	115	30	33	15	90	79	46.5	357 (36.3)	1055 (107.5)	1146 (116.0)	19.6 (2.0)	39.2 (4.0)	15
		PCU-CS9-65-50	65	50	190	160	30	110	100	130	18	35	10	90	77	54.5	308 (31.4)	1062 (108.3)	1147 (116.0)	19.6 (2.0)	39.2 (4.0)	16.9
		PCU-CS9-65-55	65	55	190	170	20	115	95	130	18	25	10	100	87	43.6	297 (30.4)	953 (97.2)	1040 (106.0)	19.6 (2.0)	39.2 (4.0)	17.7
		PCU-CS9-65-60	65	60	190	170	20	115	95	130	18	25	10	100	87	50	298 (30.4)	965(98.4)	1041 (106.0)	19.6 (2.0)	39.2 (4.0)	17.6
		PCU-CS9-65-65	65	65	190	190	0	130	80	130	18	20	10	110	92	47.3	299 (30.4)	829 (84.5)	891 (90.9)	19.6 (2.0)	39.2 (4.0)	17
		PCU-CS9-65-70	65	70	190	190	0	130	80	130	18	20	10	110	92	58.5	300 (30.4)	841 (85.7)	892 (90.9)	19.6 (2.0)	39.2 (4.0)	15.9
