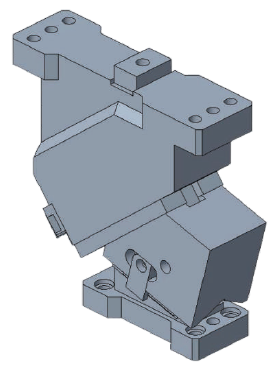

Product Details

Technical Description

Material Type: Refer catalogue for material details

Width (W) : 165 mm

Angle (Φ) : 50 to 60

Order Type : Code-Size (W)-Φ-OC
Example : PCU-CS15-165-50-NF

*For OC option Please refer to our catalogue

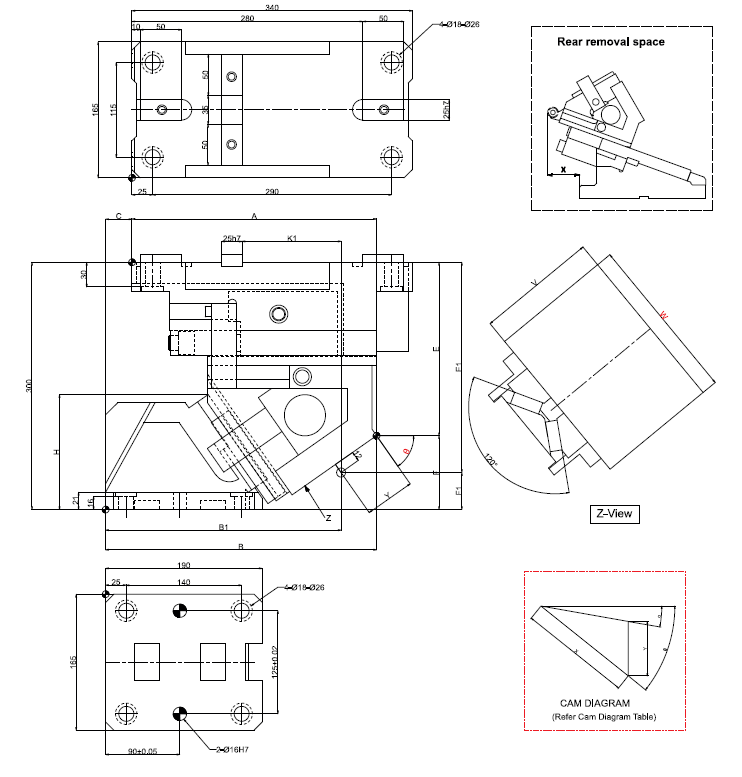

Item Code	W Mm	Angle	a mm	a1 mm	b mm	b1 mm	c mm	E mm	e1 mm	F mm	f1 mm	h mm	K1 Mm	V Mm	Y Mm	M Mm	S mm	SL Kg	SL1 Kg	SLM Kg	WF Kg	wt Kg
PCU-CS15-165-50	165	50	307.27	267.1	322.27	282.1	15	195.63	245	104.37	55	136.3	105.5	120	62.51	81	77.8	449 (45.8)	2550 (260.1)	2694 (274.7)	294.2 (30.0)	64.3
PCU-CS15-165-55	165	55	296.59	253.67	328.59	285.67	32	210.3	255	89.7	45	139.6	120	125	60.8	88	87.2	449 (45.8)	2564 (261.4)	2694 (274.7)	294.2 (30.0)	65.2
PCU-CS15-165-60	165	60	288.56	238.54	333.56	283.54	45	222.26	265	77.74	35	143.2	113	125	64.69	95	100	449 (45.8)	2582 (263.3)	2694 (274.7)	294.2 (30.0)	66.6
