Pawan-ec - Product Details

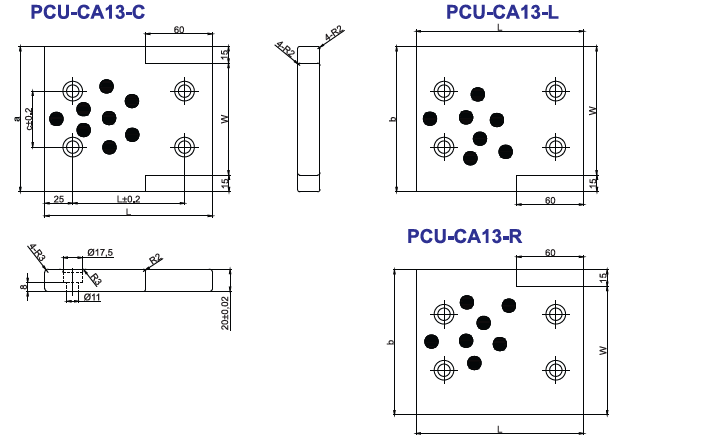

Item Code	Type	W (mm)	L (mm)	L (mm)	A (mm)	B (mm)	C (mm)
PCU-CA13-75-100-C	C-Type	75	100	50	105	90	40
PCU-CA13-75-125-C	C-Type	75	125	75	105	90	40
PCU-CA13-75-150-C	C-Type	75	150	100	105	90	40
PCU-CA13-100-125-C	C-Type	100	125	75	130	115	50
PCU-CA13-100-150-C	C-Type	100	150	100	130	115	50
PCU-CA13-125-150-C	C-Type	125	150	100	155	140	75
PCU-CA13-125-200-C	C-Type	125	200	150	155	140	75
PCU-CA13-125-250-C	C-Type	125	250	200	155	140	75
PCU-CA13-150-200-C	C-Type	150	200	150	180	165	100
PCU-CA13-150-250-C	C-Type	150	250	200	180	165	100
PCU-CA13-75-100-L	L-Type	75	100	50	105	90	40
PCU-CA13-75-125-L	L-Type	75	125	75	105	90	40
PCU-CA13-75-150-L	L-Type	75	150	100	105	90	40
PCU-CA13-100-125-L	L-Type	100	125	75	130	115	50
PCU-CA13-100-150-L	L-Type	100	150	100	130	115	50
PCU-CA13-125-150-L	L-Type	125	150	100	155	140	75
PCU-CA13-125-200-L	L-Type	125	200	150	155	140	75
PCU-CA13-125-250-L	L-Type	125	250	200	155	140	75
PCU-CA13-150-200-L	L-Type	150	200	150	180	165	100
PCU-CA13-150-250-L	L-Type	150	250	200	180	165	100
PCU-CA13-75-100-R	R-Type	75	100	50	105	90	40
PCU-CA13-75-125-R	R-Type	75	125	75	105	90	40
PCU-CA13-75-150-R	R-Type	75	150	100	105	90	40
PCU-CA13-100-125-R	R-Type	100	125	75	130	115	50
PCU-CA13-100-150-R	R-Type	100	150	100	130	115	50
PCU-CA13-125-150-R	R-Type	125	150	100	155	140	75
PCU-CA13-125-200-R	R-Type	125	200	150	155	140	75
PCU-CA13-125-250-R	R-Type	125	250	200	155	140	75
PCU-CA13-150-200-R	R-Type	150	200	150	180	165	100
PCU-CA13-150-250-R	R-Type	150	250	200	180	165	100
