Product Details

Technical Description

Material Type: Refer catalogue for material details

Width (W): 52mm

Angle (Φ) : 00

Stroke (S) : 25, 40 & 60

Order Type : Code-Size (W)-Φ-Stroke(S)
Example : PCU-CS1-52-00-25

Availability : 20 Days
(*Note - This is tentative schedule, may vary as per material availability)

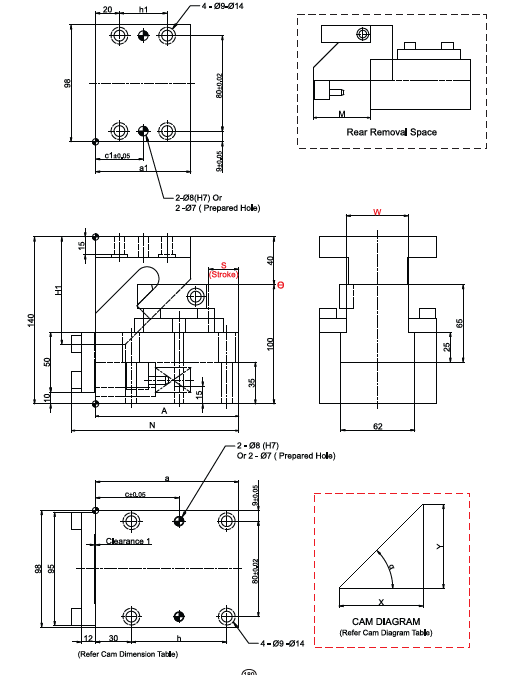

Item Code	W Mm		S Mm	A Mm	a mm	a1 mm	c mm	C1 mm	h mm	h1 mm	N mm	SL Kg	SL1 Kg	SLM Kg	WF Kg	WFM Kg	wt Kg	M mm
PCU-CS1 - 52-00-25	52	0	25	120	120	80	70	40	80	90	140	144 (14.7)	504 (51.4)	594 (60.6)	14.7 (1.5)	29.4 (3.0)	8	68
PCU-CS1 - 52-00-40	52	0	40	135	135	90	80	45	95	100	155	101 (10.3)	542 (55.2)	605 (61.7)	14.7 (1.5)	29.4 (3.0)	8	58
PCU-CS1 - 52-00-60	52	0	60	180	180	110	55	55	140	120	200	109 (11.1)	571 (58.2)	613 (62.5)	14.7 (1.5)	29.4 (3.0)	14	60
