Product Details

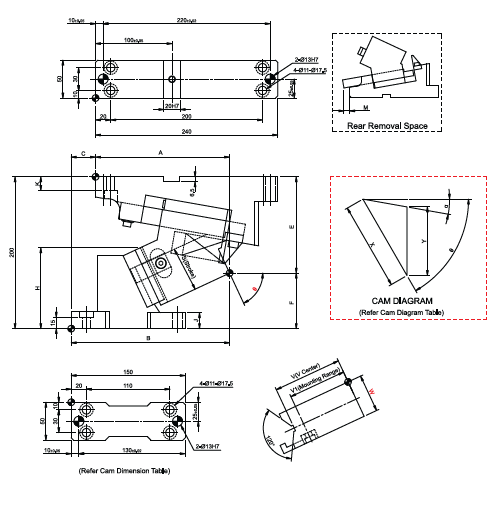

Technical Description

Material Type: Refer catalogue for material details

Width (W) : 50mm

Angle (Φ) : 55 to 70

Order Type : Code-Size (W)-Φ-OC
Example : PCU-CS2-50-60-K

*For OC option Please refer to our catalogue

Item Code	W Mm		a mm	b mm	c mm	E mm	F mm	h mm	J mm	k mm	l mm	V Mm	V1 Mm	M mm	S mm	SL Kg	SL1 Kg	SLM Kg	WF Kg	WFM Kg	wt Kg
PCU-CS2-50-55	50	55	189.83	189.83	0	116.3	83.7	104.8	21	20	30	75	65	0	52.1	163 (16.6)	900 (91.8)	979 (99.9)	19.6(2.0)	39.2(4.0)	10.8
PCU-CS2-50-60	50	60	179.27	194.27	15	125.08	74.92	105.5	21	18	30	75	65	3	59.1	163 (16.6)	911 (92.9)	979 (99.9)	19.6(2.0)	39.2(4.0)	11.2
PCU-CS2-50-65	50	65	176.6	208.6	32	126.87	73.13	106.5	21	18	25	90	75	3	58.3	299 (30.5)	922 (94.0)	979 (99.9)	19.6(2.0)	39.2(4.0)	11.6
PCU-CS2-50-70	50	70	177	215	38	135.83	64.17	107	21	18	20	92	75	3	57.6	226 (23.1)	916 (93.4)	980 (100.0)	19.6(2.0)	39.2(4.0)	12
